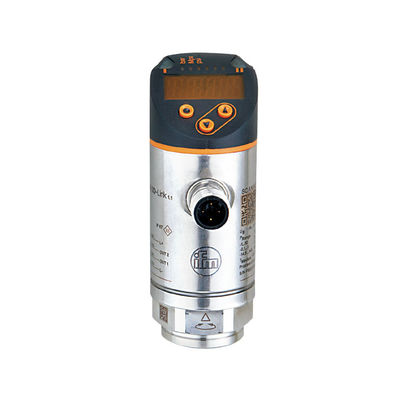

IFM Pressure sensor with display PN2099 PN-1-1BRER14-MFRKG

MOQ:	1
Price:	$498/piece
Standard Packaging:	1005050mm
Delivery Period:	3 day
Payment Method:	T/T
Supply Capacity:	1piece in stock

Details Information

Product Description

Detail Information

Place of Origin

GERMANY

Brand Name

Certification

Model Number

PN2099

System:

Gold-plated Contacts

Weight[g]:

237.5

Dimensions[mm]:

Ø 34 / L = 90.7

Product Description

Application
Measuring element						ceramic-capacitive pressure measuring		cell
Application					for industrial applications
Media					liquids and gases
Medium temperature			[°C]			-25...80
Pressure rating					10000 mbar		145 psi
Min. bursting pressure					30000 mbar		450 psi
Vacuum resistance			[mbar]		-1000
Type of pressure						relative pressure
Electrical data
Operating voltage [V]						18...30 DC; (according to EN 50178 SELV/PELV)
Current consumption				[mA]		< 35
Min. insulation resistance [MΩ]					100; (500 V DC)
Protection class						III
Reverse polarity protection					yes
Power-on delay time			[s]		0.3
Integrated watchdog					yes
Inputs / outputs
Number of inputs and outputs						Number of digital outputs: 2; Number of analog outputs: 1
ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — PN2099-00 — 16.06.2015 —

PN2099
Pressure sensor with display
PN-1-1BRER14-MFRKG/US/ /V
Outputs
Total number of outputs						2
Output signal						switching signal; analog signal; IO-Link; (configurable)
Electrical design						PNP/NPN
Number of digital outputs						2
Output function						normally open / closed; (configurable)
Max. voltage drop switching output DC				[V]	2
Permanent current rating of switching output DC				[mA]	250
Switching frequency DC				[Hz]	< 500
Number of analog outputs					1
Analog current output				[mA]	4...20; (scalable 1:5)
Max. load				[Ω]	500
Analog voltage output				[V]	0...10; (scalable 1:5)
Min. load resistance				[Ω]	2000
Short-circuit protection					yes
Type of short-circuit protection					yes (non-latching)
Overload	protection					yes
Measuring/setting range
Measuring range					-1000...1000 mbar		-14.5...14.5 psi
Set point SP					-990...1000 mbar		-14.4...14.5 psi
Reset point rP					-995...995 mbar		-14.45...14.45 psi
Analog start point					-1000...600 mbar		-14.5...8.7 psi
Analog endpoint					-600...1000 mbar		-8.7...14.5 psi
Insteps of					5 mbar		0.05 psi
Accuracy / deviations
Switch point accuracy [% of the span]					< ± 0,4; (Turn down 1:1)
Repeatability		[% of the span]			< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)

Characteristics deviation [% of the span]					< ± 0,25 (BFSL) / < ± 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]					< ± 0,1; (Turn down 1:1)

Long-term stability [% of the span]					< ± 0,05; (Turn down 1:1; per 6 months)
Temperature coefficient zero point [% of the span / 10 K]					< ± 0,2; (-0...80 °C)
Temperature coefficient span						< ± 0,2; (-0...80 °C)
		[% of the span / 10 K]
ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — PN2099-00 — 16.06.2015 —

PN2099
Pressure sensor with display
PN-1-1BRER14-MFRKG/US/ /V
Reaction times
Response time				[ms]		< 1.5
Delay time programmable dS, dr				[s]	0...50
Damping for the switching output dAP				[s]	0...4
Damping for the analog output dAA				[s]	0...4
Max. response time analog output				[ms]	3
Software / programming
Parameter setting options						hysteresis / window; normally open / closed; switch-on/ switch-off delay; Damping; Display unit; current/voltage output
Interfaces
Communication interface						IO-Link
Transmission type						COM2
IO-Link revision						1.1
SDCI standard						IEC 61131-9
IO-Link device ID						467 d / 00 01 d3 h
Profiles					Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode					yes
Required master port class					A
Process data analogue					1
Process data binary					2
Min. process cycle time [ms]					2.3
Operating conditions
Ambient temperature [°C]						-25...80
Storage temperature Protection				[°C]		-40...100 IP 65; IP 67
Tests / approvals
EMC					DIN EN 61000-6-2
					DIN EN 61000-6-3
Shock resistance					DIN EN 60068-2-27		50 g (11 ms)
Vibration resistance					DIN EN 60068-2-6		20 g (10...2000 Hz)
MTTF [years]					138
UL approval					UL approval number		J012
Pressure equipment directive					sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Mechanical data
Weight				[g]		235
Material						stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)					stainless steel (1.4404 / 316L); Al2O3 (ceramics); FKM
Min. pressure cycles					100 million
Tightening torque [Nm]					25...35; (recommended tightening torque; Depends on lubrication, sealand pressure rating)
Process connection					threaded connection G 1/4 Internal thread (DIN EN ISO 1179-2)
Restrictor element integrated					no (can be retrofitted)
