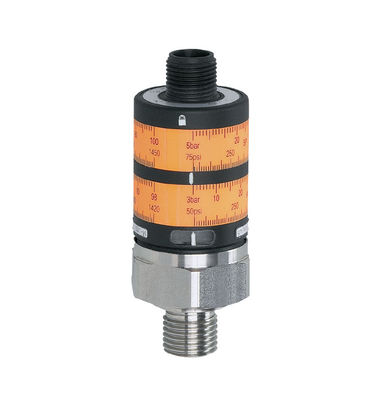

IFM Pressure switch with intuitive switch point setting PK6524 PK-010-RFG14-HCPKG

IFM Pressure switch with intuitive switch point setting PK6524 PK-010-RFG14-HCPKG

MOQ: 1
Price: $197/piece
Standard Packaging: 80*50*50mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
PK6524
Weight[g]:
92.5
Dimensions[mm]:
Ø 27 / L = 71.6
Product Description
Product characteristics
Number of inputs and outputs   Number of digital outputs: 2
Measuring range   0...10 bar 0...145 psi
Process connection   threaded connection G 1/4 external thread internal thread:M5
Application
Application for industrial applications
Media   liquids and gases
Medium temperature [°C]   -25...80
Min. bursting pressure   300 bar 4350 psi
Pressure rating   25 bar 362 psi
Type of pressure   relative pressure
MAWP (for applications   25 bar 362 psi
according to CRN)
Electrical data
Operating voltage [V]   9.6...32 DC
Current consumption [mA]   < 25
Min. insulation resistance [MΩ]   100; (500 V DC)
Protection class     III
Reverse polarity protection     yes
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2
Outputs
Total number of outputs 2
Output signal switching signal
Electrical design   PNP
Number of digital outputs   2
IFM Pressure switch with intuitive switch point setting PK6524 PK-010-RFG14-HCPKG 0ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PK6524-01 — 29.04.2014 —

PK6524
Pressure switch with intuitive switch point setting
PK-010-RFG14-HCPKG/US/ /W
Output function   complementary
Max. voltage drop switching
output DC
[V]   2
Permanent current rating of
switching output DC
[mA]   500
Switching frequency DC [Hz]   100
Short-circuit protection   yes
Type of short-circuit
protection
  pulsed
Overload protection   yes
Measuring/setting range
Measuring range   0...10 bar 0...145 psi
Set point SP   0.5...10 bar 7.5...145 psi
Reset point rP   0.3...9.8 bar 5...142 psi
Accuracy / deviations
Switch point accuracy
[% of the final value]
  < ± 2,5; (Setting accuracy)
Repeatability
[% of the final value]
  < ± 0,5; (with temperature fluctuations < 10 K)
Characteristics deviation
[% of the final value]
  < ± 1,5 (BFSL) / < ± 2,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Temperature drift per 10 K     < ± 0.5
Software / programming
Adjustment of the switch setting rings
point
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature [°C]   -40...100
Protection   IP 67
Tests / approvals
EMC   DIN EN 61000-6-2
  DIN EN 61000-6-3
Shock resistance   DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance   DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]   500
Pressure Equipment Directive   Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Mechanical data
Weight [g]   92.5
Materials     PBT; PC; FKM; stainless steel (1.4404 / 316L)
Materials (wetted parts)     stainless steel (1.4404 / 316L); FKM
Min. pressure cycles       50 million
Tightening torque [Nm]   25
Process connection     threaded connection G 1/4 external thread internal thread:M5
Restrictor element integrated     no (can be retrofitted)
IFM Pressure switch with intuitive switch point setting PK6524 PK-010-RFG14-HCPKG 1 ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PK6524-01 — 29.04.2014 —

PK6524
Pressure switch with intuitive switch point setting
PK-010-RFG14-HCPKG/US/ /W
Displays / operating elements
Display   operation LED, green
  switching status LED, yellow
With scale   yes
Remarks
Pack quantity 1 pcs.
