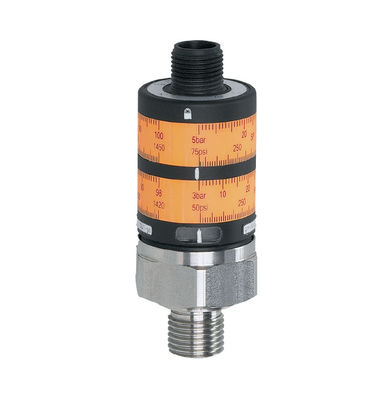

IFM Pressure switch with intuitive switch point setting PK6522 PK-100-SFG14-HCPKG

IFM Pressure switch with intuitive switch point setting PK6522 PK-100-SFG14-HCPKG

MOQ: 1
Price: $197/piece
Standard Packaging: 80*30*30mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
PK6522
Weight[g]:
94
Dimensions[mm]:
Ø 27 / L = 71.6
Application:
For Industrial Applications
Product Description
Application
Media liquids and gases
Medium temperature [°C]   -25...80
Pressure rating   200 bar   2900 psi
Min. bursting pressure   1000 bar 14500 psi
Type of pressure     relative pressure
Electrical data
Operating voltage [V]   9.6...32 DC
Current consumption [mA]   < 25
Min. insulation resistance [MΩ]   100; (500 V DC)
Protection class     III
Reverse polarity protection   yes
Outputs
Total number of outputs 2
Output signal switching signal
Electrical design PNP
Number of digital outputs   2
Output function complementary
Max. voltage drop switching
output DC
[V]   2
Permanent current rating of
switching output DC
[mA]   500
Switching frequency DC [Hz]     100
Short-circuit protection   yes
Type of short-circuit
protection
  pulsed
Overload protection   yes
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PK6522-00 — 29.04.2014

PK6522
Pressure switch with intuitive switch point setting
PK-100-SFG14-HCPKG/US/ /W
Measuring/setting range
Measuring range   0...100 bar 0...1450 psi
Set point SP   5...100 bar 75...1450 psi
Reset point rP   3...98 bar 50...1420 psi
Accuracy / deviations
Switch point accuracy
[% of the final value]
  < ± 2,5; (Setting accuracy)
Repeatability
[% of the final value]
  < ± 0,5; (with temperature fluctuations < 10 K)
Characteristics deviation
[% of the final value]
  < ± 1,5 (BFSL) / < ± 2,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Temperature drift per 10 K   < ± 0,5
Temperature drift per 10 K   < ± 0.5
Software / programming
Adjustment of the switch setting rings
point
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature [°C] -40...100
Protection IP 67
Tests / approvals
  EN 61000-4-2 ESD 4 kV CD / 8 kV AD
  EN 61000-4-3 HF radiated 10 V/m
EMC EN 61000-4-4 Burst 2 kV
  EN 61000-4-5 Surge 1 kV signal for DC units
  EN 61000-4-6 HF conducted 10 V
Shock resistance   DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance   DIN IEC 68-2-6 20 g (10...2000 Hz)
MTTF [years]   713
Mechanical data
Weight [g]   93.4
Materials   PBT; PC; FKM; stainless steel (1.4404 / 316L)
Materials (wetted parts)     stainless steel (1.4404 / 316L); FKM
Min. pressure cycles   50 million
Tightening torque [Nm]     25
Process connection   threaded connection G 1/4 external thread internal threadM5
Displays / operating elements
Display   operation LED, green
  switching status LED, yellow
With scale   yes
Remarks
Pack quantity 1 pcs.
