Product characteristics | ||||||||||||||
Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 | |||||||||||||
Measuring range | -0.0124...0.25 bar | -12.4...250 mbar | -5...100.4 inH2O | -1.24...25 kPa | ||||||||||
Process connection | threaded connection G 1 external thread Aseptoflex Vario | |||||||||||||
Application | ||||||||||||||
Special feature | Gold-plated contacts | |||||||||||||
Application | flush mountable for the food and beverage industry | |||||||||||||
Media | viscous media and liquids with suspended particles; liquids and gases | |||||||||||||
Medium temperature [°C] | -25...125; (145 max. 1h) | |||||||||||||
Min. bursting pressure | 30000 mbar | 12044 inH2O | 3000 kPa | |||||||||||
Pressure rating | 6000 mbar | 2400 inH2O | 600 kPa | |||||||||||
Vacuum resistance | [mbar] | -1000 | ||||||||||||
Type of pressure | relative pressure | |||||||||||||
No dead space | yes | |||||||||||||
MAWP (for applications according to CRN) |
[bar] | 10 | ||||||||||||
![]() |
||||||||||||||
PI2798 | ||||||||||||||

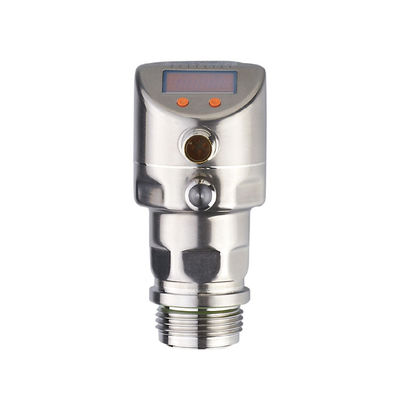

Flush pressure sensor with display | ||||||||||||||
PI-,25BREA01-MFRKG/US/ /P | ||||||||||||||
Electrical data | ||||||||||||||
Min. insulation resistance [MΩ] | 100; (500 V DC) | |||||||||||||
Protection class | III | |||||||||||||
Reverse polarity protection | yes | |||||||||||||
Measuring principle | hydrostatic | |||||||||||||
Integrated watchdog | yes | |||||||||||||
2-wire | ||||||||||||||
Operating voltage | [V] | 20...32 DC | ||||||||||||
Current consumption | [mA] | 3.6...21 | ||||||||||||
Power-on delay time | [s] | 1 | ||||||||||||
3-wire | ||||||||||||||
Operating voltage [V] | 18...32 DC | |||||||||||||
Current consumption | [mA] | < 45 | ||||||||||||
Power-on delay time | [s] | 0.5 | ||||||||||||
Inputs / outputs | ||||||||||||||
Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 | |||||||||||||
Outputs | ||||||||||||||
Total number of outputs | 2 | |||||||||||||
Output signal | switching signal; analogue signal; IO-Link; (configurable) | |||||||||||||
Electrical design | PNP/NPN | |||||||||||||
Number of digital outputs | 2 | |||||||||||||
Output function | normally open / normally closed; (parameterisable) | |||||||||||||
Number of analogue outputs | 1 | |||||||||||||
Analogue current output [mA] | 4...20, invertible; (scalable) | |||||||||||||
Short-circuit protection | yes | |||||||||||||
Type of short-circuit protection |
pulsed | |||||||||||||
Overload protection | yes | |||||||||||||
2-wire | ||||||||||||||
Max. load [Ω] | 300 | |||||||||||||
3-wire | ||||||||||||||
Max. voltage drop switching output DC |
[V] | 2 | ||||||||||||
Permanent current rating of switching output DC |
[mA] | 250 | ||||||||||||
Switching frequency DC | [Hz] | 125 | ||||||||||||
Max. load | [Ω] | (Ub - 10 V) / 20 mA | ||||||||||||
Measuring/setting range | ||||||||||||||
Measuring range | -0.0124...0.25 bar | -12.4...250 mbar | -5...100.4 inH2O | -1.24...25 kPa | ||||||||||
Set point SP | -12...250 mbar | -4.8...100.4 inH2O | -1.2...25 kPa | |||||||||||
Reset point rP | -12.4...249.6 mbar | -5...100.2 inH2O | -1.24...24.96 kPa | |||||||||||
Analogue start point | -12.4...187.4 mbar | -5...75.2 inH2O | -1.24...18.74 kPa | |||||||||||
Analogue endpoint | 50...250 mbar | 20.1...100.4 inH2O | 5...25 kPa | |||||||||||
Insteps of | 0.2 mbar | 0.1 inH2O | 0.02 kPa | |||||||||||
![]() |
||||||||||||||
PI2798 | ||||||||||||||
Flush pressure sensor with display | ||||||||||||||
PI-,25BREA01-MFRKG/US/ /P | ||||||||||||||
Factory setting | SP1 = 62.4 mbar | rP1 = 57.4 mbar | ||||||||||||
SP2 = 187.4 mbar | rP2 = 182.4 mbar | |||||||||||||
ASP = 0.0 mbar | AEP = 250.0 mbar | |||||||||||||
Accuracy / deviations | ||||||||||||||
Switch point accuracy [% of the span] |
< ± 0,2; (Turn down 1:1) | |||||||||||||
Repeatability | [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) | ||||||||||||
Characteristics deviation [% of the span] |
< ± 0,2; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1) |
|||||||||||||
Linearity deviation [% of the span] |
< ± 0,15; (Turn down 1:1) | |||||||||||||
Hysteresis deviation [% of the span] |
< ± 0,15; (Turn down 1:1) | |||||||||||||
Long-term stability [% of the span] |
< ± 0,1; (Turn down 1:1; per year) | |||||||||||||
Temperature coefficient zero point [% of the span / 10 K] |
< ± 0,05; (0...70 °C) | |||||||||||||
Temperature coefficient span | < ± 0,15; (0...70 °C) | |||||||||||||
[% of the span / 10 K] | ||||||||||||||
Response times | ||||||||||||||
Damping process value dAP [s] | 0...30 | |||||||||||||
Damping for the analogue output dAA |
[s] | 0.01...99.99 | ||||||||||||
2-wire | ||||||||||||||
Step response time analogue [ms] | 45 | |||||||||||||
output | ||||||||||||||
3-wire | ||||||||||||||
Min. response time of [ms] | 3 | |||||||||||||
switching output (dAP) | ||||||||||||||
Step response time analogue [ms] | 7 | |||||||||||||
output | ||||||||||||||
Interfaces | ||||||||||||||
Communication interface | IO-Link | |||||||||||||
Transmission type | COM2 (38,4 kBaud) | |||||||||||||
IO-Link revision | 1.0 | |||||||||||||
Profiles | no profile | |||||||||||||
SIO mode | yes | |||||||||||||
Required master port type | A | |||||||||||||
Process data analogue | 1 | |||||||||||||
Process data binary | 2 | |||||||||||||
Min. process cycle time [ms] | 2.3 | |||||||||||||
Supported DeviceIDs | Type of operation | DeviceID | ||||||||||||
Default | 257 | |||||||||||||
Operating conditions | ||||||||||||||
Ambient temperature | [°C] | -25...80 | ||||||||||||
Storage temperature | [°C] | -40...100 | ||||||||||||
![]() |
||||||||||||||
PI2798 | ||||||||||||||
Flush pressure sensor with display | ||||||||||||||
PI-,25BREA01-MFRKG/US/ /P | ||||||||||||||
Protection | IP 67; IP 68; IP 69K | |||||||||||||
Tests / approvals | ||||||||||||||
EMC | EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | ||||||||||||
EN 61000-4-3 HF radiated | 10 V/m | |||||||||||||
EN 61000-4-4 Burst | 2 kV | |||||||||||||
EN 61000-4-5 Surge | 0,5/1 kV | |||||||||||||
EN 61000-4-6 HF conducted | 10 V | |||||||||||||
Shock resistance | DIN IEC 68-2-27 | 50 g (11 ms) | ||||||||||||
Vibration resistance | DIN IEC 68-2-6 | 20 g (10...2000 Hz) | ||||||||||||
MTTF [years] | 160 | |||||||||||||
Note on approval | factory certificate available as download at www.factory-certificate.ifm | |||||||||||||
UL approval | UL Approval no. | J018 | ||||||||||||
File number UL | E174189 | |||||||||||||
Mechanical data | ||||||||||||||
Weight [g] | 354 | |||||||||||||
Materials | stainless steel (1.4404 / 316L); FKM; PTFE; PBT; PEI; PFA | |||||||||||||
Materials (wetted parts) | ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PTFE |
|||||||||||||
Min. pressure cycles | 100 million | |||||||||||||
Process connection | threaded connection G 1 external thread Aseptoflex Vario | |||||||||||||
Displays / operating elements | ||||||||||||||
Display | Display unit | LED, green | ||||||||||||
switching status | LED, yellow | |||||||||||||
function display | alphanumeric display, 4-digit | |||||||||||||
measured values | alphanumeric display, 4-digit |

MOQ: | 1 |
Price: | $743/piece |
Standard Packaging: | 110*60*60mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
Product characteristics | ||||||||||||||
Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 | |||||||||||||
Measuring range | -0.0124...0.25 bar | -12.4...250 mbar | -5...100.4 inH2O | -1.24...25 kPa | ||||||||||
Process connection | threaded connection G 1 external thread Aseptoflex Vario | |||||||||||||
Application | ||||||||||||||
Special feature | Gold-plated contacts | |||||||||||||
Application | flush mountable for the food and beverage industry | |||||||||||||
Media | viscous media and liquids with suspended particles; liquids and gases | |||||||||||||
Medium temperature [°C] | -25...125; (145 max. 1h) | |||||||||||||
Min. bursting pressure | 30000 mbar | 12044 inH2O | 3000 kPa | |||||||||||
Pressure rating | 6000 mbar | 2400 inH2O | 600 kPa | |||||||||||
Vacuum resistance | [mbar] | -1000 | ||||||||||||
Type of pressure | relative pressure | |||||||||||||
No dead space | yes | |||||||||||||
MAWP (for applications according to CRN) |
[bar] | 10 | ||||||||||||
![]() |
||||||||||||||
PI2798 | ||||||||||||||
Flush pressure sensor with display | ||||||||||||||
PI-,25BREA01-MFRKG/US/ /P | ||||||||||||||
Electrical data | ||||||||||||||
Min. insulation resistance [MΩ] | 100; (500 V DC) | |||||||||||||
Protection class | III | |||||||||||||
Reverse polarity protection | yes | |||||||||||||
Measuring principle | hydrostatic | |||||||||||||
Integrated watchdog | yes | |||||||||||||
2-wire | ||||||||||||||
Operating voltage | [V] | 20...32 DC | ||||||||||||
Current consumption | [mA] | 3.6...21 | ||||||||||||
Power-on delay time | [s] | 1 | ||||||||||||
3-wire | ||||||||||||||
Operating voltage [V] | 18...32 DC | |||||||||||||
Current consumption | [mA] | < 45 | ||||||||||||
Power-on delay time | [s] | 0.5 | ||||||||||||
Inputs / outputs | ||||||||||||||
Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 | |||||||||||||
Outputs | ||||||||||||||
Total number of outputs | 2 | |||||||||||||
Output signal | switching signal; analogue signal; IO-Link; (configurable) | |||||||||||||
Electrical design | PNP/NPN | |||||||||||||
Number of digital outputs | 2 | |||||||||||||
Output function | normally open / normally closed; (parameterisable) | |||||||||||||
Number of analogue outputs | 1 | |||||||||||||
Analogue current output [mA] | 4...20, invertible; (scalable) | |||||||||||||
Short-circuit protection | yes | |||||||||||||
Type of short-circuit protection |
pulsed | |||||||||||||
Overload protection | yes | |||||||||||||
2-wire | ||||||||||||||
Max. load [Ω] | 300 | |||||||||||||
3-wire | ||||||||||||||
Max. voltage drop switching output DC |
[V] | 2 | ||||||||||||
Permanent current rating of switching output DC |
[mA] | 250 | ||||||||||||
Switching frequency DC | [Hz] | 125 | ||||||||||||
Max. load | [Ω] | (Ub - 10 V) / 20 mA | ||||||||||||
Measuring/setting range | ||||||||||||||
Measuring range | -0.0124...0.25 bar | -12.4...250 mbar | -5...100.4 inH2O | -1.24...25 kPa | ||||||||||
Set point SP | -12...250 mbar | -4.8...100.4 inH2O | -1.2...25 kPa | |||||||||||
Reset point rP | -12.4...249.6 mbar | -5...100.2 inH2O | -1.24...24.96 kPa | |||||||||||
Analogue start point | -12.4...187.4 mbar | -5...75.2 inH2O | -1.24...18.74 kPa | |||||||||||
Analogue endpoint | 50...250 mbar | 20.1...100.4 inH2O | 5...25 kPa | |||||||||||
Insteps of | 0.2 mbar | 0.1 inH2O | 0.02 kPa | |||||||||||
![]() |
||||||||||||||
PI2798 | ||||||||||||||
Flush pressure sensor with display | ||||||||||||||
PI-,25BREA01-MFRKG/US/ /P | ||||||||||||||
Factory setting | SP1 = 62.4 mbar | rP1 = 57.4 mbar | ||||||||||||
SP2 = 187.4 mbar | rP2 = 182.4 mbar | |||||||||||||
ASP = 0.0 mbar | AEP = 250.0 mbar | |||||||||||||
Accuracy / deviations | ||||||||||||||
Switch point accuracy [% of the span] |
< ± 0,2; (Turn down 1:1) | |||||||||||||
Repeatability | [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) | ||||||||||||
Characteristics deviation [% of the span] |
< ± 0,2; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1) |
|||||||||||||
Linearity deviation [% of the span] |
< ± 0,15; (Turn down 1:1) | |||||||||||||
Hysteresis deviation [% of the span] |
< ± 0,15; (Turn down 1:1) | |||||||||||||
Long-term stability [% of the span] |
< ± 0,1; (Turn down 1:1; per year) | |||||||||||||
Temperature coefficient zero point [% of the span / 10 K] |
< ± 0,05; (0...70 °C) | |||||||||||||
Temperature coefficient span | < ± 0,15; (0...70 °C) | |||||||||||||
[% of the span / 10 K] | ||||||||||||||
Response times | ||||||||||||||
Damping process value dAP [s] | 0...30 | |||||||||||||
Damping for the analogue output dAA |
[s] | 0.01...99.99 | ||||||||||||
2-wire | ||||||||||||||
Step response time analogue [ms] | 45 | |||||||||||||
output | ||||||||||||||
3-wire | ||||||||||||||
Min. response time of [ms] | 3 | |||||||||||||
switching output (dAP) | ||||||||||||||
Step response time analogue [ms] | 7 | |||||||||||||
output | ||||||||||||||
Interfaces | ||||||||||||||
Communication interface | IO-Link | |||||||||||||
Transmission type | COM2 (38,4 kBaud) | |||||||||||||
IO-Link revision | 1.0 | |||||||||||||
Profiles | no profile | |||||||||||||
SIO mode | yes | |||||||||||||
Required master port type | A | |||||||||||||
Process data analogue | 1 | |||||||||||||
Process data binary | 2 | |||||||||||||
Min. process cycle time [ms] | 2.3 | |||||||||||||
Supported DeviceIDs | Type of operation | DeviceID | ||||||||||||
Default | 257 | |||||||||||||
Operating conditions | ||||||||||||||
Ambient temperature | [°C] | -25...80 | ||||||||||||
Storage temperature | [°C] | -40...100 | ||||||||||||
![]() |
||||||||||||||
PI2798 | ||||||||||||||
Flush pressure sensor with display | ||||||||||||||
PI-,25BREA01-MFRKG/US/ /P | ||||||||||||||
Protection | IP 67; IP 68; IP 69K | |||||||||||||
Tests / approvals | ||||||||||||||
EMC | EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | ||||||||||||
EN 61000-4-3 HF radiated | 10 V/m | |||||||||||||
EN 61000-4-4 Burst | 2 kV | |||||||||||||
EN 61000-4-5 Surge | 0,5/1 kV | |||||||||||||
EN 61000-4-6 HF conducted | 10 V | |||||||||||||
Shock resistance | DIN IEC 68-2-27 | 50 g (11 ms) | ||||||||||||
Vibration resistance | DIN IEC 68-2-6 | 20 g (10...2000 Hz) | ||||||||||||
MTTF [years] | 160 | |||||||||||||
Note on approval | factory certificate available as download at www.factory-certificate.ifm | |||||||||||||
UL approval | UL Approval no. | J018 | ||||||||||||
File number UL | E174189 | |||||||||||||
Mechanical data | ||||||||||||||
Weight [g] | 354 | |||||||||||||
Materials | stainless steel (1.4404 / 316L); FKM; PTFE; PBT; PEI; PFA | |||||||||||||
Materials (wetted parts) | ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PTFE |
|||||||||||||
Min. pressure cycles | 100 million | |||||||||||||
Process connection | threaded connection G 1 external thread Aseptoflex Vario | |||||||||||||
Displays / operating elements | ||||||||||||||
Display | Display unit | LED, green | ||||||||||||
switching status | LED, yellow | |||||||||||||
function display | alphanumeric display, 4-digit | |||||||||||||
measured values | alphanumeric display, 4-digit |
