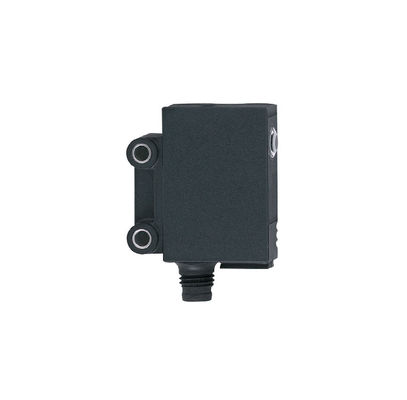

OJ5139 - Through-beam laser sensor receiver - ifm 35 x 11 x 24

OJ5139 - Through-beam laser sensor receiver - ifm 35 x 11 x 24

MOQ: 1
Price: $117/piece
Standard Packaging: 40*20*30mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
OJ5139
Type Of Light:
Red Light
Electrical Design:
PNP
Weight[g]:
27.25
Product Description
Application
Function principle Through-beam sensor
Electrical data
Operating voltage [V]   10...30 DC
Current consumption [mA]     < 12
Protection class   III
Reverse polarity protection   yes
Type of light   red light
Wave length [nm]     650
Typ. lifetime [h]   50000
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OJ5139-03 — 05.05.2010

OJ5139
Through-beam laser sensor receiver
OJELFPKG/SO/AS
Outputs
Electrical design PNP
Output function light-on/dark-on mode; (programmable)
Max. voltage drop switching
output DC
[V]   2.5
Permanent current rating of
switching output DC
[mA]   200
Switching frequency DC [Hz]   1200
Short-circuit protection   yes
Type of short-circuit
protection
  pulsed
Overload protection     yes
Detection zone
Transmitter / receiver receiver
Range [m]   < 15
Range adjustable     yes
Diameter of the smallest
detectable object
[mm]   2
Operating conditions
Ambient temperature [°C] -10...60
Protection IP 67
Tests / approvals
EMC   EN 60947-5-2
Laser protection class   1
MTTF [years]   952
Mechanical data
Weight [g]   39
Housing   rectangular
Dimensions [mm]   35 x 11 x 24
Materials   housing: ABS; LED window: SEPS; pushbutton: SEPS
Lens material   glass
Lens alignment   side lens
Displays / operating elements
Display   switching status 1 x LED, yellow
  operation 1 x LED, green
  function 1 x LED, red
Electronic lock   yes
Accessories
  screws: 2 x
Accessories (supplied) spring washers: 2 x
  Nuts: 2 x
Remarks
Remarks   operating voltage "supply class 2" according to cULus
Pack quantity   1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OJ5139-03 — 05.05.2010

OJ5139
Through-beam laser sensor receiver
OJELFPKG/SO/AS
Electrical connection
OJ5139 - Through-beam laser sensor receiver - ifm 35 x 11 x 24 0Connector: 1 x M8
Connection
2 Teach OJ5139 - Through-beam laser sensor receiver - ifm 35 x 11 x 24 1
