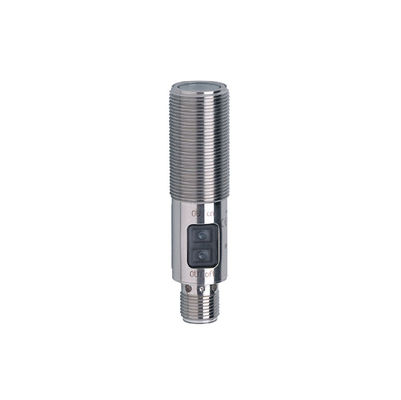

IFM Retro-reflective LASER sensor OGP700 OGPLFPKG Industrial Automation and Controls

IFM Retro-reflective LASER sensor OGP700 OGPLFPKG Industrial Automation and Controls

MOQ: 1
Price: $299/IPECE
Standard Packaging: 80*50*50mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
OGP700
Electrical Design:
PNP
Weight[g]:
63.5
Dimensions[mm]:
M18 X 1 / L = 72
Product Description
Product characteristics
Type of light red light
Laser protection class 1
Housing threaded type
Dimensions [mm]   M18 x 1 / L = 72
Application
Special feature polarisation filter
Function principle Retro-reflective sensor
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA]   15; (24 V)
Protection class   II
Reverse polarity protection   yes
Type of light   red light
Wave length [nm]   655
Typ. lifetime [h]   50000
Outputs
Electrical design PNP
Output function light-on/dark-on mode; (programmable)
Max. voltage drop switching
output DC
[V]   2.5
Permanent current rating of
switching output DC
[mA]   200
Switching frequency DC [Hz]   2000
Short-circuit protection   yes
Type of short-circuit
protection
  pulsed
Overload protection   yes
IFM Retro-reflective LASER sensor OGP700 OGPLFPKG Industrial Automation and Controls 0ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGP700-01 — 11.05.2011 —

OGP700
Retro-reflective laser sensor
OGPLFPKG/US100
Detection zone
Range referred to prismatic
reflector
[m]   0.2...15; (Prismatic reflector Ø 80 E20005)
Factory setting   dark-on mode
Range adjustable   yes
Diameter of the smallest
detectable object
[mm]   3; (1 m; 15 m: 20)
Max. light spot diameter [mm]   78
Light spot dimensions refer to   at maximum range
Polarisation filter available   yes
Operating conditions
Ambient temperature
Protection
[°C]   -10...60
IP 65; IP 67
Tests / approvals
EMC   EN 60947-5-2
Laser protection class   1
Notes on laser protection   Caution: laser light
  laser class: 1
    EN / IEC60825-1:2007
    EN / IEC60825-1:2014
    Complies with 21 CFR 1040 except
for deviations pursuant to Laser
Notice No. 50, dated June 2007.
MTTF [years]   600
Mechanical data
Weight [g]   65
Housing   threaded type
Dimensions [mm]   M18 x 1 / L = 72
Thread designation   M18 x 1
Materials   housing: stainless steel (1.4404 / 316L); operator
interface: PA; Sealing: EPDM; pushbuttons: TPU
Lens material   PMMA
