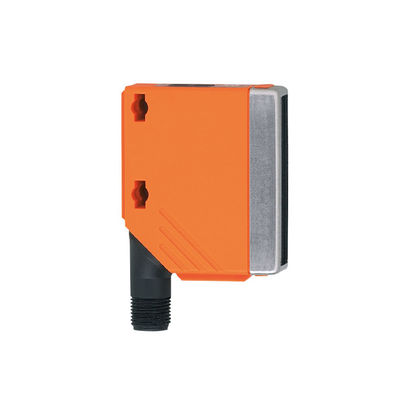

Diffuse reflection sensors with background suppression O5H500 O5H-FPKG

Diffuse reflection sensors with background suppression O5H500 O5H-FPKG

MOQ: 1
Price: $164/piece
Standard Packaging: 60*60*40mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
OGH500
Electrical Design:
PNP
Weight[g]:
67.5
Dimensions[mm]:
56 X 18.2 X 46.8
Product Description
Photoelectric sensors
O5H5001: Programming buttons
2: When a M5 mounting screw is used, the max. tightening torque is 2 Nm.
Receiver in upper lens, transmitter in lower lens
O5H-FPKG/US
Diffuse reflection sensor
Rectangular plastic
Plug and socket
Background suppression
Teach function
Electronic lock
Range 50...1800mm
(Range referred to white paper 200 x
200 mm, 90 % remission)
adjustable
 Diffuse reflection sensors with background suppression O5H500 O5H-FPKG 0
Diffuse reflection sensors with background suppression O5H500 O5H-FPKG 1 Diffuse reflection sensors with background suppression O5H500 O5H-FPKG 2
Output light-on / dark-on programmable
Range
Object white (90 % remission)
Object grey (18 % remission)
Object black (6 % remission)
[mm]
50...1800
50...900
50...600
Light spot diameter[mm] 50 ( Range 1000 mm )
Operating voltage[V] 10...36 DC
Current rating [mA] 200
Short-circuit protection pulsed
Reverse polarity protection yes
Overload protection yes
Voltage drop[V] < 2.5
Current consumption[mA] 25
Switching frequency[Hz] 1000
Type of light Red light 624 nm
Operating temperature [°C] -25...60
Protection IP 67, II
EMC EN 60947-5-2
Housing material housing: PA; bezel: high-grade stainless steel; operator interface: TPU
Material lens PMMA
Function display
Switching status
LED yellow
Connection M12 connector
Remarks cULus - Class 2 source required
ifm electronic gmbh • Teichstraße 4 • 45127 Essen — We reserve the right to make technical alterations without prior notice. — GB — O5H500 — 13.04.2007
Diffuse reflection sensors with background suppression O5H500 O5H-FPKG 3 Diffuse reflection sensors with background suppression O5H500 O5H-FPKG 4
Diffuse reflection sensors with background suppression O5H500 O5H-FPKG 5
O5H500
Wiring
Diffuse reflection sensors with background suppression O5H500 O5H-FPKG 6 Diffuse reflection sensors with background suppression O5H500 O5H-FPKG 7
Accuracy graph
Diffuse reflection sensors with background suppression O5H500 O5H-FPKG 8
a: sensor
b: object
c: background
x: distance sensor / object
y: min. distance object / background
Diffuse reflection sensors with background suppression O5H500 O5H-FPKG 9
Values in [mm]
1 = object black (6 % remission),background white (90 % remission)
2 = object grey (18 % remission),background white (90 % remission)
3 = object white (90 % remission),background white (90 % remission)
