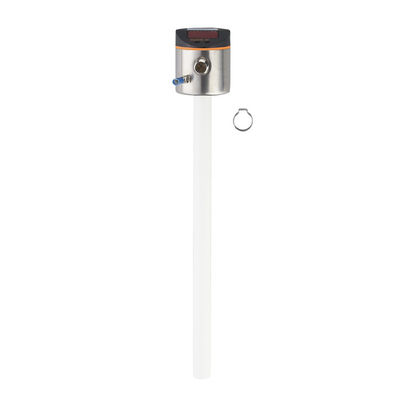

IFM Electronic level sensor LK7022 LK0264A-A-00KQPKG gold-plated contacts
  • Name
  • Name
  • Name
  • Name

IFM Electronic level sensor LK7022 LK0264A-A-00KQPKG gold-plated contacts

MOQ: 1
Price: $537/piece
Standard Packaging: 300*50*50MM
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Details Information
Product Description
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
LK7022
System:
Gold-plated Contacts
Weight[g]:
289.6
Product Description
Application
Media hydrous coolants; oils; oil-based media; water; media similar to water
Dielectric constant of the
medium		   > 2
Cannot be used for   extremely conductive media; adhering media; granulates; bulk material; acids; alkali
Tank pressure [bar]   0.5; (when mounting with mounting accessories: E43001 - E43007, E43019)
coolants
Medium temperature [°C]   0...35; (with climatic tube E43100)
oil
Medium temperature [°C]   0...70
Medium temperature short
time		 [°C]   0...90; (< 1 h)
water
Medium temperature [°C]   0...35; (with climatic tube E43100 35...65 °C)
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — LK7022-01 — 13.05.2016

LK7022
Electronic level sensor
LK0264A-A-00KQPKG/US
Electrical data
Operating voltage [V] 12...30 DC
Current consumption [mA]   < 50
Protection class III
Reverse polarity protection yes
Power-on delay time [s]   < 3
Outputs
Total number of outputs 2
Output signal switching signal; IO-Link
Electrical design PNP/NPN
Number of digital outputs 2
Output function   normally open / normally closed; (parameterisable)
Max. voltage drop switching
output DC		 [V]   2.5
Permanent current rating of
switching output DC		 [mA]   200
Short-circuit protection   yes
Type of short-circuit
protection		   thermal, pulsed
Overload protection   yes
Measuring/setting range
Factory setting automatic media detection
Probe length L [mm] 264
Active range A [mm] 195
Inactive range I1 / I2 [mm]   53 / 16
Setting range
Set point SP [mm]   25...200
Reset point rP [mm]   20...195
Insteps of [mm]   5
Reference point OP [mm]   69 - 82 - 94 - 106 - 118 - 130 - 143 - 155 - 167 - 179 - 191 - 204 - OFF
Hysteresis, OP [mm]   2
Accuracy / deviations
Measuring error
[% of the final value]		   ± 5
Repeatability   ± 2
Resolution [mm]   5
Software / programming
Parameter setting options hysteresis / window; normally open / normally closed; switching logic; SP/rP
position; adjustment OP; medium selection; offset setting; switch-on/switch-off delay
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — LK7022-01 — 13.05.2016

LK7022
Electronic level sensor
LK0264A-A-00KQPKG/US
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
IO-Link device ID 0x00028F
Profiles Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode   yes
Required master port type   A
Process data analogue   2
Process data binary   2
Min. process cycle time [ms]   3.2
Operating conditions
Ambient temperature [°C] 0...60
Storage temperature [°C] -25...80
Protection IP 67
Tests / approvals
EMC   DIN EN 61000-6-2
  DIN EN 61000-6-4
Shock resistance   DIN EN 60068-2-27 15 g (11 ms)
Vibration resistance   DIN EN 60068-2-6 5 g (10...2000 Hz)
MTTF [years]   265
Mechanical data
Weight [g]   516.6
Dimensions [mm]   Ø 16

Materials   stainless steel (1.4301 / 304); stainless steel
(1.4404 / 316L); FKM; NBR; PBT; PC; PA; PP; TPV
Materials (wetted parts)   PP
Displays / operating elements
  Display unit 2 x LED, green (cm, inch)
Display   switching status 2 x LED, yellow
  measured values alphanumeric display, 4-digit
    parameter setting alphanumeric display, 4-digit
Remarks
Notes Please see the technical note under "Downloads"
Pack quantity 1 pcs.
Electrical connection
Connector: 1 x M12; Contacts: gold-plated
