IFM Electronic Level Sensor LK1022 LK0264B-B-00KQPKG Switching Signal IO-Link
  • Name
  • Name
  • Name
  • Name

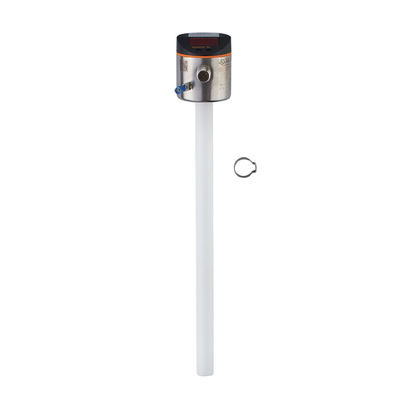

IFM Electronic Level Sensor LK1022 LK0264B-B-00KQPKG Switching Signal IO-Link

MOQ: 1
Price: $537/piece
Standard Packaging: 300*50*50mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Details Information
Product Description
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
LK1022
Probe Length L[mm]:
264
Weight[g]:
289.8
Highlight:

IO Link Electronic Level Sensor

,

IFM Electronic Level Sensor

,

LK1022 Electronic Level Sensor

Product Description
LK1022
Electronic level sensor
LK0264B-B-00KQPKG/US
IFM Electronic Level Sensor LK1022 LK0264B-B-00KQPKG Switching Signal IO-Link 01 alphanumeric display 4-digit
2 status LEDs
3 programming buttons
4 housing connection flat-pin connector 6.3 mm DIN 46244

Product characteristics
Number of inputs and outputs   Number of digital outputs: 2
Factory setting   hydrous coolants; water; media similar to water
Probe length L [mm]   264
Application
Special feature   Gold-plated contacts
Media   hydrous coolants; oils; oil-based media; water; media similar to water
Dielectric constant of the
medium		   > 2
Cannot be used for   extremely conductive media; adhering media; granulates; bulk
material; acids; alkali; hygienic areas and electroplating applications
Maximum speed of the
change of level		 [mm/s]   100
Tank pressure [bar]   0.5; (when mounting with mounting accessories: E43001 - E43007, E43019)
Coolants
Medium temperature [°C]   0...35; (with climatic tube E43100: 35...65 °C)
Oil
Medium temperature [°C]   0...70
Medium temperature short
time		 [°C]   0...90; (< 1 h)
IFM Electronic Level Sensor LK1022 LK0264B-B-00KQPKG Switching Signal IO-Link 1ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — LK1022-02 — 13.04.2023 —

LK1022
Electronic level sensor
LK0264B-B-00KQPKG/US
Water
Medium temperature [°C]   0...35; (with climatic tube E43100: 35...65 °C)
Electrical data
Operating voltage [V]   18...30 DC
Current consumption [mA]   < 50
Protection class     III
Reverse polarity protection     yes
Power-on delay time [s]   < 3
Measuring principle   capacitive
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2
Outputs
Total number of outputs   2
Output signal   switching signal; IO-Link
Electrical design   PNP/NPN
Number of digital outputs   2
Output function   normally open / normally closed; (parameterisable)
Max. voltage drop switching
output DC		 [V]   2.5
Permanent current rating of
switching output DC		 [mA]   200
Short-circuit protection   yes
Type of short-circuit
protection		   thermal, pulsed
Overload protection   yes
Measuring/setting range
Factory setting hydrous coolants; water; media similar to water
Probe length L [mm]   264
Active range A [mm]   195
Inactive range I1 / I2 [mm]   53 / 16
Setting range
Set point SP [mm]   25...200
Reset point rP [mm]   20...195
Insteps of [mm]   5
Reference point OP [mm]   69 - 82 - 94 - 106 - 118 - 130 - 143 - 155 - 167 - 179 - 191 - 204 - OFF
Hysteresis, OP   [mm]   2
Accuracy / deviations
Measuring error
[% of the final value]		   ± 5
Repeatability   ± 2
Resolution [mm]   5
Software / programming
Parameter setting options hysteresis / window; normally open / normally closed; switching logic; SP/rP
position; adjustment OP; medium selection; offset setting; switch-on/switch-off delay
IFM Electronic Level Sensor LK1022 LK0264B-B-00KQPKG Switching Signal IO-Link 2 ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — LK1022-02 — 13.04.2023 —

LK1022
Electronic level sensor
LK0264B-B-00KQPKG/US
Interfaces
Communication interface   IO-Link
Transmission type   COM2 (38,4 kBaud)
IO-Link revision   1.1
SDCI standard   IEC 61131-9
Profiles   Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode   yes
Required master port type   A
Process data analogue   2
Process data binary   2
Min. process cycle time [ms]   3.2
Supported DeviceIDs   Type of operation DeviceID
  Default 652
Operating conditions
Ambient temperature [°C] 0...60
Storage temperature [°C]   -25...80
Protection   IP 67
Tests / approvals
EMC   DIN EN 61000-6-2
  DIN EN 61000-6-4
Shock resistance   DIN EN 60068-2-27 15 g (11 ms)
Vibration resistance   DIN EN 60068-2-6 5 g (10...2000 Hz)
MTTF [years]   265
Mechanical data
Weight [g]   289.8
Dimensions [mm]   Ø 16
Materials     stainless steel (1.4301 / 304); stainless steel
(1.4404 / 316L); FKM; NBR; PBT; PC; PA; PP; TPV
Materials (wetted parts)   PP
Displays / operating elements
Display Display unit 2 x LED, green (cm, inch)
  switching status 2 x LED, yellow
  measured values alphanumeric display, 4-digit
  parameter setting alphanumeric display, 4-digit
