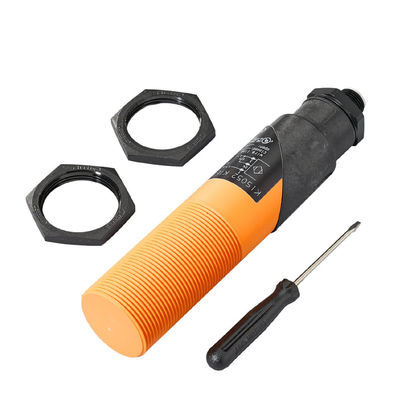

IFM KI5052 IFM CAPACITIVE SENSOR 15MM SENSING Connector 1 X M12

IFM KI5052 IFM CAPACITIVE SENSOR 15MM SENSING Connector 1 X M12

MOQ: 1
Price: $200/piece
Standard Packaging: 150*50*50mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
KI5052
Electrical Design:
PNP
Dimensions[mm]:
M30 X 1.5 / L = 143
Weight[g]:
146
Highlight:

15MM SENSING IFM CAPACITIVE SENSOR

,

M12 IFM CAPACITIVE SENSOR

,

IFM CAPACITIVE SENSOR

Product Description
KI5052
Capacitive sensor
KIE3015-FPKG/NI/55V/US-100-DPX
IFM KI5052 IFM CAPACITIVE SENSOR 15MM SENSING Connector 1 X M12 01 potentiometer

Electrical data
Operating voltage [V] 10...55 DC; ("supply class 2" tocULus)
Current consumption [mA] 14; (24 V)
Protection class II
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open / normally closed; (selectable)
Max. voltage drop switching
output DC
[V]   2.5
Permanent current rating of
switching output DC
[mA]   250
Switching frequency DC [Hz]   40
Short-circuit proof   yes
Overload protection   yes
Detection zone
Sensing range [mm] 15
Operating conditions
Ambient temperature [°C]   -25...70
Protection IP 65
Increased immunity yes; (increased immunity to conducted radio frequency interference)
Tests / approvals
EMC EN 60947-5-2
MTTF [years]   743
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KI5052-00 — 12.07.2004

KI5052
Capacitive sensor
KIE3015-FPKG/NI/55V/US-100-DPX
Mechanical data
Weight [g] 146.8
Housing threaded type
Mounting   non-flush mountable
Dimensions [mm]   M30 x 1.5 / L = 143
Thread designation   M30 x 1.5
Materials   PBT; end cap: PC
Displays / operating elements
IFM KI5052 IFM CAPACITIVE SENSOR 15MM SENSING Connector 1 X M12 1 IFM KI5052 IFM CAPACITIVE SENSOR 15MM SENSING Connector 1 X M12 2 IFM KI5052 IFM CAPACITIVE SENSOR 15MM SENSING Connector 1 X M12 3 Display switching status 1 x LED, yellow
Accessories
Accessories (supplied)   lock nuts: 2
  screwdriver: 1
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
