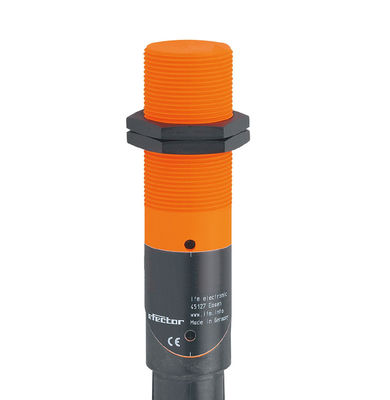

IFM Capacitive Sensor KI0024 KIE2015-FBOA/NI Ifm Electronic Capacitive Threaded Barrel

IFM Capacitive Sensor KI0024 KIE2015-FBOA/NI Ifm Electronic Capacitive Threaded Barrel

MOQ: 1
Price: $223/piece
Standard Packaging: 130*40*40mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
KI0024
Dimensions[mm]:
M30 X 1.5 / L = 125
Weight[g]:
137
Highlight:

IFM Capacitive Sensor KI0024

,

KIE2015-FBOA/NI Capacitive Sensor

,

Electronic Capacitive Sensor KI0024

Product Description
KI0024
Capacitive sensor
KIE2015-FBOA/NI
IFM Capacitive Sensor KI0024 KIE2015-FBOA/NI Ifm Electronic Capacitive Threaded Barrel 0

Product characteristics
Output function normally open / normally closed; (selectable)
Sensing range [mm]   15
Housing   threaded type
Dimensions [mm]   M30 x 1.5 / L = 125
Electrical data
Operating voltage [V] 20...250 AC/DC
Protection class   II
Reverse polarity protection   no
Outputs
Output function   normally open / normally closed; (selectable)
Max. voltage drop switching
output DC
[V]   8
Max. voltage drop switching
output AC
[V]   10
Minimum load current [mA]   5
Max. leakage current [mA]   2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC)
Permanent current rating of
switching output AC
[mA]   200; (for UL application: 250 / 100 DC)
Permanent current rating of
switching output DC
[mA]   200; (for UL application: 250 AC / 100 DC)
Short-time current rating of
switching output
[mA]   1500; (20 ms / 0,5 Hz)
Switching frequency AC [Hz]   25
Switching frequency DC [Hz]   40
Short-circuit proof   no
Overload protection   no
IFM Capacitive Sensor KI0024 KIE2015-FBOA/NI Ifm Electronic Capacitive Threaded Barrel 1ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KI0024-02 — 13.04.2023 —

KI0024
Capacitive sensor
KIE2015-FBOA/NI
Detection zone
Sensing range [mm]   15
Sensing range adjustable   yes
Factory setting sensing range [mm]   15
Real sensing range Sr [mm]   15 ± 10 %
Operating distance [mm]   0...12.1
Accuracy / deviations
Correction factor glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
Hysteresis [% of Sr]   1...15
Switch point drift [% of Sr]   -15...15
Operating conditions
Ambient temperature [°C] -25...70
Protection IP 65
Increased immunity yes; (increased immunity to conducted radio frequency interference)
Tests / approvals
EMC   EN 60947-5-2
MTTF [years]   468
Mechanical data
Weight [g]   137
Housing     threaded type
Mounting     non-flush mountable
Dimensions [mm]   M30 x 1.5 / L = 125
Thread designation     M30 x 1.5
Materials   PBT; end cap: PC
Displays / operating elements
IFM Capacitive Sensor KI0024 KIE2015-FBOA/NI Ifm Electronic Capacitive Threaded Barrel 2 IFM Capacitive Sensor KI0024 KIE2015-FBOA/NI Ifm Electronic Capacitive Threaded Barrel 3 IFM Capacitive Sensor KI0024 KIE2015-FBOA/NI Ifm Electronic Capacitive Threaded Barrel 4 Display switching status 1 x LED, yellow
Electrical connection
Required protection miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Accessories
IFM Capacitive Sensor KI0024 KIE2015-FBOA/NI Ifm Electronic Capacitive Threaded Barrel 5 IFM Capacitive Sensor KI0024 KIE2015-FBOA/NI Ifm Electronic Capacitive Threaded Barrel 6 Items supplied lock nuts: 2
Remarks
Remarks   Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity   1 pcs.
