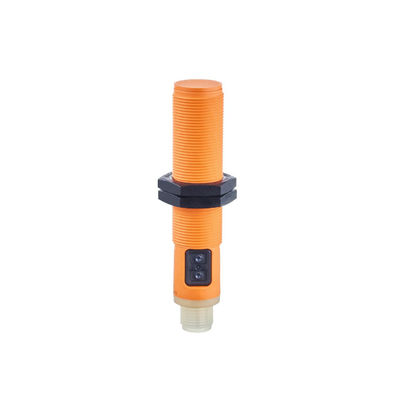

IFM Capacitive Sensor KG5065 KG-3120NFAKGP2T/US Connector 1 X M12

IFM Capacitive Sensor KG5065 KG-3120NFAKGP2T/US Connector 1 X M12

MOQ: 1
Price: $195/piece
Standard Packaging: 103 x 45 x 46mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
KG5065
Electrical Design:
PNP/NPN
Dimensions[mm]:
M18 X 1 / L = 87
Weight[g]:
31.5
Highlight:

IFM Capacitive Sensor KG5065

,

IFM Capacitive Sensor KG5065 KG-3120NFAKGP2T/US

Product Description
KG5065
Capacitive sensor
KG-3120NFAKGP2T/US
IFM Capacitive Sensor KG5065 KG-3120NFAKGP2T/US Connector 1 X M12 01 LED ring
2 programming buttons

Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] < 20
Protection class II
Reverse polarity protection yes
Outputs
Electrical design   PNP/NPN; (automatic load detection PNP/NPN; automatic
load detection PNP/NPN:; when using a resistive load < 20 kΩ)
Output function   normally open / normally closed; (selectable)
Max. voltage drop switching
output DC
[V]   2.5
Permanent current rating of
switching output DC
[mA]   200
Switching frequency DC [Hz]   10
Short-circuit proof     yes
Overload protection   yes
Detection zone
Sensing range [mm]   12
Accuracy / deviations
Hysteresis
Switch point drift
[% of Sr]
[% of Sr]
  1...15
-20...20
IFM Capacitive Sensor KG5065 KG-3120NFAKGP2T/US Connector 1 X M12 1ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KG5065-01 — 31.01.2014 —

KG5065
Capacitive sensor
KG-3120NFAKGP2T/US
Interfaces
Communication interface IO-Link
Transmission type COM1 (4,8 kBaud)
IO-Link revision 1.1
SDCI standard   IEC 61131-9 CDV
IO-Link device ID   387d / 000183h
Profiles   Smart Sensor
SIO mode   yes
Min. process cycle time [ms]   101
Operating conditions
Ambient temperature [°C] -25...80
Note on ambient temperature   temperature of the sensing face: -25...110 °C
Protection   IP 65; IP 67
Tests / approvals
EMC   EN 61000-4-2 ESD 8 kV AD
  EN 61000-4-3 HF radiated 10 V/m
  EN 61000-4-4 Burst 2 kV
  EN 61000-4-6 HF conducted 3 V
  EN 55011 class B
Vibration resistance   EN 60068-2-6 Fc (10...55 Hz) / 1 mm amplitude,
oscillation period 5 min., 30 min.
per axis at resonance or 55 Hz
Shock resistance   EN 60068-2-27 Ea 30 g 6 shocks / 11 ms half-sine (x, y, z)
MTTF [years]   566
Mechanical data
Weight [g] 31.5
Housing threaded type
Mounting non-flush mountable
Dimensions [mm] M18 x 1 / L = 87
Thread designation M18 x 1
Materials housing: PBT; plug: PC; pushbuttons: TPE-U
Displays / operating elements
Display switching status 1 x LED, yellow
Teach function yes
Electronic lock yes
