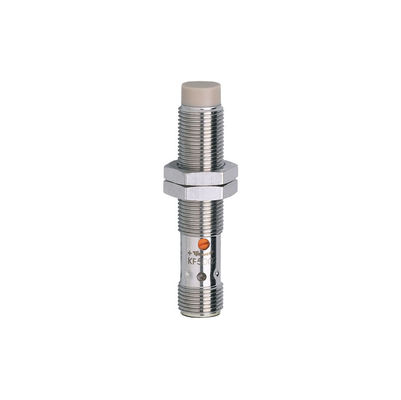

IFM Capacitive Sensor KF5002 KFA3080NBPKG/NI/US Connector 1 X M12

IFM Capacitive Sensor KF5002 KFA3080NBPKG/NI/US Connector 1 X M12

MOQ: 1
Price: $159/piece
Standard Packaging: 70*40*40mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
KF5002
Electrical Design:
PNP
Dimensions[mm]:
M12 X 1 / L = 61
Weight[g]:
39.2
Highlight:

IFM Capacitive Sensor KFA3080NBPKG/NI/US

,

IFM Capacitive Sensor 1 X M12

,

IFM Capacitive Sensor KF5002

Product Description
KF5002
Capacitive sensor
KFA3080NBPKG/NI/US
IFM Capacitive Sensor KF5002 KFA3080NBPKG/NI/US Connector 1 X M12 01 LED 4 x 90°
2 potentiometer

Product characteristics
Electrical design PNP
Output function normally open
Sensing range[mm] 3...12
Housing  threaded type
Dimensions[mm] M12 x 1 / L = 61
Application
Mediadry bulk material; liquids
Electrical data
Operating voltage [V]10...36 DC; ("supply class 2" tocULus)
Current consumption [mA] < 12
Protection class III
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching
output DC
[V] 2.5
Permanent current rating of
switching output DC
[mA] 100
Switching frequency DC[Hz] 50
Short-circuit proof yes
Overload protection yes
Detection zone
Sensing range [mm] 3...12
Sensing range adjustable yes
Factory setting sensing range [mm] 8
Real sensing range Sr [mm] 8 ± 10 %
Accuracy / deviations
Correction factor glass: 0.6 / water: 1 / ceramics: 0.5 / PVC: 0.4
Hysteresis [% of Sr] 1...15
IFM Capacitive Sensor KF5002 KFA3080NBPKG/NI/US Connector 1 X M12 1

KF5002
Capacitive sensor
KFA3080NBPKG/NI/US
Switch point drift[% of Sr] -20...20
Operating conditions
Ambient temperature [°C]-25...70
Protection IP 65
Increased immunity yes
Tests / approvals
EMC EN 60947-5-2
MTTF[years] 634
Mechanical data
Weight [g]39.2
Housingthreaded type
Mountingnon-flush mountable
Dimensions [mm]M12 x 1 / L = 61
Thread designation M12 x 1
Materials stainless steel (1.4404 / 316L); PEEK
