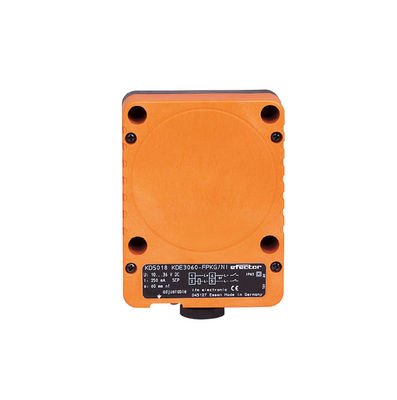

IFM Capacitive Sensor KD5018 KDE3060-FPKG/NI 105 X 80 X 40MM

IFM Capacitive Sensor KD5018 KDE3060-FPKG/NI 105 X 80 X 40MM

MOQ: 1
Price: $296/piece
Standard Packaging: 110*80*40mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
KD5018
Electrical Design:
PNP
Dimensions[mm]:
105 X 80 X 40
Weight[g]:
297.5
Highlight:

IFM Capacitive Sensor KD5018

,

KDE3060-FPKG/NI Capacitive Sensor

Product Description
KD5018
Capacitive sensor
KDE3060-FPKG/NI
IFM Capacitive Sensor KD5018 KDE3060-FPKG/NI 105 X 80 X 40MM 0

Product characteristics
Electrical design PNP
Output function normally open / normally closed; (selectable)
Sensing range [mm]   60
Housing   rectangular
Dimensions [mm]   105 x 80 x 40
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA]   15; (24 V)
Protection class   II
Reverse polarity protection   yes
Outputs
Electrical design   PNP
Output function   normally open / normally closed; (selectable)
Max. voltage drop switching
output DC
[V]   2.5
Permanent current rating of
switching output DC
[mA]   250
Switching frequency DC [Hz]   10
Short-circuit proof   yes
Overload protection   yes
Detection zone
Sensing range [mm]   60
Real sensing range Sr [mm]   60 ± 10 %
Operating distance [mm]   0...48.6
IFM Capacitive Sensor KD5018 KDE3060-FPKG/NI 105 X 80 X 40MM 1ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KD5018-02 — 13.04.2023 —

KD5018
Capacitive sensor
KDE3060-FPKG/NI
Accuracy / deviations
Correction factor glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
Hysteresis [% of Sr]     1...15
Switch point drift [% of Sr]   -15...15
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 65
Increased immunity yes
Tests / approvals
EMC   EN 60947-5-2
MTTF [years]   537
Mechanical data
Weight [g] 297.5
Housing rectangular
Mounting non-flush mountable
Dimensions [mm]   105 x 80 x 40
Materials   PPE modified
Displays / operating elements
IFM Capacitive Sensor KD5018 KDE3060-FPKG/NI 105 X 80 X 40MM 2 IFM Capacitive Sensor KD5018 KDE3060-FPKG/NI 105 X 80 X 40MM 3 IFM Capacitive Sensor KD5018 KDE3060-FPKG/NI 105 X 80 X 40MM 4 Display switching status 1 x LED, yellow
Accessories
Items supplied spring washers: 4
  cylinder screws: 4
Remarks
Pack quantity 1 pcs.
Electrical connection
terminals: ...2.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5
Connection
IFM Capacitive Sensor KD5018 KDE3060-FPKG/NI 105 X 80 X 40MM 5
