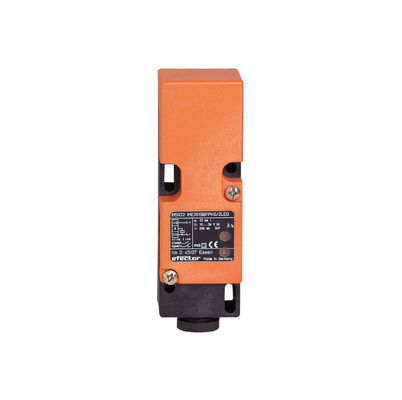

IFM Electronic Gmbh Inductive Sensor IM0010 Non-flush Mountable

IFM Electronic Gmbh Inductive Sensor IM0010 Non-flush Mountable

MOQ: 1
Price: $92/piece
Standard Packaging: 40*40*120mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
IM0010
Sensing Range[mm]:
20
Dimensions[mm]:
40 X 40 X 120
Weight[g]:
184.5
Highlight:

IM0010 Inductive Sensor

,

IFM Electronic Gmbh Inductive Sensor

,

Non-flush Mountable Inductive Sensor

Product Description
IM0010
Inductive sensor
IME2020-FBOA
Outputs
Output functionnormally open / normally closed; (selectable)
Max. voltage drop switching
output DC
[V] 6
Max. voltage drop switching
output AC
[V] 6.5
Minimum load current[mA] 5
Max. leakage current[mA] 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Permanent current rating of
switching output AC
[mA] 250; (350 (...50 °C))
Permanent current rating of
switching output DC
[mA] 100
Short-time current rating of
switching output
[mA] 2200; (20 ms / 0,5 Hz)
Switching frequency AC [Hz]20
IFM Electronic Gmbh Inductive Sensor IM0010  Non-flush Mountable 0 Switching frequency DC [Hz]55
IFM Electronic Gmbh Inductive Sensor IM0010  Non-flush Mountable 1Short-circuit proofno
Overload protection no
Detection zone
Sensing range[mm] 20
Real sensing range Sr [mm] 20 ± 10 %
Operating distance [mm] 0...16.2
Accuracy / deviations
Correction factorsteel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis
Switch point drift
[% of Sr]
[% of Sr]
 1...15
-10...10

Operating conditions
Ambient temperature [°C] -25...80
Protection IP 65
Tests / approvals
EMC EN 60947-5-2
 EN 55011class B
MTTF[years] 604
UL approval Ta0...40 °C
 Enclosure typeType 1
 voltage supplyUnlimited Voltage
 File number ULE174191
Mechanical data
Weight[g] 183
Housing rectangular
Mounting  non-flush mountable
Dimensions [mm] 40 x 40 x 120
Materials PPE
Displays / operating elements
IFM Electronic Gmbh Inductive Sensor IM0010  Non-flush Mountable 2 IFM Electronic Gmbh Inductive Sensor IM0010  Non-flush Mountable 3 IFM Electronic Gmbh Inductive Sensor IM0010  Non-flush Mountable 4 Display switching status 1 x LED, yellow
 ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IM0010-00 — 06.03.2003

IM0010
Inductive sensor
IME2020-FBOA
Electrical connection
Required protectionminiature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Remarks
Remarks Recommendation: Check the safe functioning of the unit after a short circuit.
 5 positions of the active zone possible
