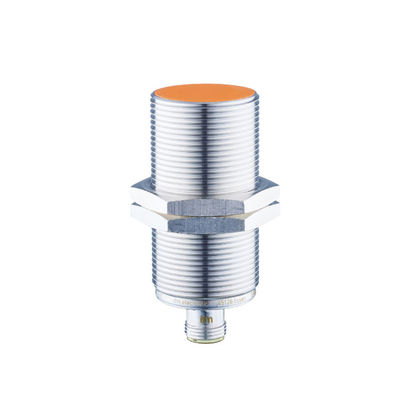

Inductive Sensor IIS206 IIKC015BASKG/2LED Flush Mountable Connector 1 X M12

Inductive Sensor IIS206 IIKC015BASKG/2LED Flush Mountable Connector 1 X M12

MOQ: 1
Price: $92/piece
Standard Packaging: 70*40*40mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
IIS206
Electrical Design:
PNP/NPN
Dimensions[mm]:
M30 X 1.5 / L = 70
Weight[g]:
125.7
Highlight:

IIKC015BASKG/2LED Inductive Sensor

,

Flush Mountable Inductive Sensor

,

1 X M12 Inductive Sensor

Product Description
Product characteristics
Inductive sensor
Metal thread M30 x 1.5
Connector
Operation as 3-wire or 2-wire possible
Increased sensing range
Optical setting aid (2 LED)
Gold-plated contacts
Sensing range 15 mm; [f] flush mountable
Electrical data
Electrical design3-wire DC PNP; 2-wire DC PNP/NPN
Operating voltage[V] 10...36 DC
Current consumption[mA] 10 (24 V)
Protection class  II
Reverse polarity protection yes
Outputs
Output functionnormally open
Voltage drop[V] < 2.5
Minimum load current[mA] 2; only in 2-wire operation
Leakage current[mA] < 0.5; only in 2-wire operation
Current rating[mA] 100
Short-circuit protection  pulsed
Overload protection  yes
Switching frequency[Hz] 100
Range
Inductive Sensor IIS206 IIKC015BASKG/2LED Flush Mountable Connector 1 X M12 0Sensing range [mm]15
Real sensing range (Sr)[mm] 15 ± 10 %
Inductive Sensor IIS206 IIKC015BASKG/2LED Flush Mountable Connector 1 X M12 1Operating distance [mm]0...12.1
Accuracy / deviations
Correction factorsmild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.5 / Al approx. 0.4 / Cu
 approx. 0.3
Inductive Sensor IIS206 IIKC015BASKG/2LED Flush Mountable Connector 1 X M12 2Hysteresis [% of Sr]3...15
Inductive Sensor IIS206 IIKC015BASKG/2LED Flush Mountable Connector 1 X M12 3Switch-point drift [% of Sr]-10...10
Environment
Inductive Sensor IIS206 IIKC015BASKG/2LED Flush Mountable Connector 1 X M12 4Ambient temperature [°C]-25...70
ProtectionIP 67
Tests / approvals


IIS206
IIKC015BASKG/M/US-104-DRS/2LEDInductive sensors
EMCEN 61000-4-2 ESD:
EN 61000-4-3 HF radiated:
EN 61000-4-4 Burst:
EN 61000-4-6 HF conducted:
EN 55011:
4 kV CD / 8 kV AD
10 V/m
2 kV
10 V
class B
Inductive Sensor IIS206 IIKC015BASKG/2LED Flush Mountable Connector 1 X M12 5MTTF [Years]1475
Mechanical data
Mountingflush mountable
Housing materialsBrass white bronze coated; active face: PBT
Inductive Sensor IIS206 IIKC015BASKG/2LED Flush Mountable Connector 1 X M12 6 Inductive Sensor IIS206 IIKC015BASKG/2LED Flush Mountable Connector 1 X M12 7Weight [kg] 0.14
Displays / operating elements
Inductive Sensor IIS206 IIKC015BASKG/2LED Flush Mountable Connector 1 X M12 8Output status indication LEDyellow (4 x 90°)
Inductive Sensor IIS206 IIKC015BASKG/2LED Flush Mountable Connector 1 X M12 9Setting aid LED Red
