MOQ: | 1 |
Price: | $68/piece |
Standard Packaging: | 70*40*40mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
Product characteristics | |||||||||
Electrical design | PNP | ||||||||
Output function | normally open | ||||||||
Sensing range [mm] 8 Housing threaded type |
|||||||||
Dimensions [mm] | M18 x 1 / L = 60 | ||||||||
Application | |||||||||
Special feature | Gold-plated contacts; Increased sensing range | ||||||||
Application | Industrial applications / factory automation | ||||||||
Electrical data | |||||||||
Operating voltage [V] | 10...30 DC | ||||||||
Current consumption [mA] < 10 Protection class III |
|||||||||
Reverse polarity protection | yes | ||||||||
Outputs | |||||||||
Electrical design | PNP | ||||||||
Output function | normally open | ||||||||
Max. voltage drop switching output DC |
[V] | 2.5 | |||||||
Permanent current rating of switching output DC |
[mA] | 100 | |||||||
Switching frequency DC | [Hz] | 400 | |||||||
Short-circuit protection | yes | ||||||||
Overload protection | yes | ||||||||
Detection zone | |||||||||
Sensing range | [mm] | 8 | |||||||
Real sensing range Sr [mm] | 8 ± 10 % | ||||||||
Operating distance | [mm] | 0...6.48 | |||||||
Increased sensing range | yes | ||||||||
![]() |
|||||||||
IGS232 | |||||||||

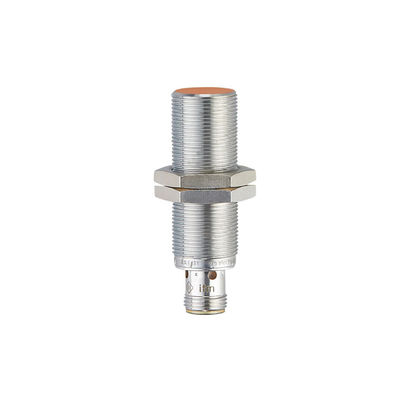

Inductive sensor | |||||||||
IGK3008BBPKG/US-104 | |||||||||
Accuracy / deviations | |||||||||
Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 | ||||||||
Hysteresis Switch point drift |
[% of Sr] [% of Sr] |
3...15 -10...10 |
|||||||
Operating conditions | |||||||||
Ambient temperature [°C] -40...85 Protection IP 65; IP 66; IP 67; IP 68; IP 69K |
|||||||||
Tests / approvals | |||||||||
EMC | EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | |||||||
EN 61000-4-3 HF radiated | 10 V/m | ||||||||
EN 61000-4-4 Burst | 2 kV | ||||||||
EN 61000-4-6 HF conducted | 10 V | ||||||||
EN 55011 | class B | ||||||||
Vibration resistance | EN 60068-2-6 Fc | 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes |
|||||||
Shock resistance | EN 60068-2-27 Ea | 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|||||||
Continuous shock resistance | EN 60068-2-27 | 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
|||||||
Fast temperature change | EN 60068-2-14 Na | TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles |
|||||||
Salt spray test | EN 60068-2-52 Kb | severity level 5 (4 test cycles) | |||||||
MTTF [years] | 1690 | ||||||||
UL approval | Ta | -25...70 °C | |||||||
Enclosure type | Type 1 | ||||||||
voltage supply | Limited Voltage/Current | ||||||||
UL Approval no. | A001 | ||||||||
File number UL | E174191 | ||||||||
Mechanical data | |||||||||
Weight | [g] | 48.3 | |||||||
Housing | threaded type | ||||||||
Mounting | flush mountable | ||||||||
Dimensions [mm] | M18 x 1 / L = 60 | ||||||||
Thread designation | M18 x 1 |
