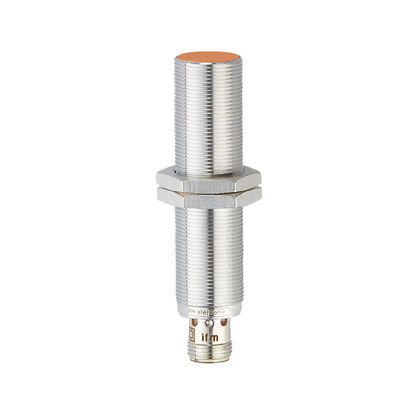

IG5539 Ifm Electronic Inductive Threaded Barrel Inductive Sensor IG5539 IGA4005-CPKG

IG5539 Ifm Electronic Inductive Threaded Barrel Inductive Sensor IG5539 IGA4005-CPKG

MOQ: 1
Price: $116/piece
Standard Packaging: 70*40*40mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
IG5539
Electrical Design:
PNP
Dimensions[mm]:
M18 X 1 / L = 80
Weight[g]:
71
Highlight:

IGA4005-CPKG Inductive Sensor

,

IG5539 Inductive Sensor

,

Electronic Inductive Sensor

Product Description
Product characteristics
Electrical design PNP
Output function complementary
Sensing range[mm] 5
Housing  threaded type
Dimensions[mm] M18 x 1 / L = 80
Application
Special featureGold-plated contacts
Electrical data
Operating voltage [V]10...30 DC
Current consumption [mA] < 10; (24 V)
Protection class II
Reverse polarity protection  yes
Outputs
Electrical design PNP
Output function complementary
Max. voltage drop switching
output DC
[V] 2.5
Permanent current rating of
switching output DC
[mA] 200
Switching frequency DC[Hz] 400
Short-circuit protection yes
Overload protection yes
Detection zone
Sensing range[mm] 5
Real sensing range Sr[mm] 5 ± 10 %
Operating distance[mm] 0...4.05
Accuracy / deviations
Correction factorsteel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis[% of Sr] 3...15
Switch point drift[% of Sr] -10...10
IG5539  Ifm Electronic Inductive Threaded Barrel Inductive Sensor IG5539 IGA4005-CPKG 0ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IG5539-01 — 30.11.2018 —

IG5539
Inductive sensor
IGA4005-CPKG/US-104
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 67
Tests / approvals
EMC EN 60947-5-2
 EN 55011class B
MTTF[years] 1441
Embedded software included yes
Mechanical data
Weight[g] 71
Housing  threaded type
Mounting  flush mountable
Dimensions[mm] M18 x 1 / L = 80
Thread designation  M18 x 1
