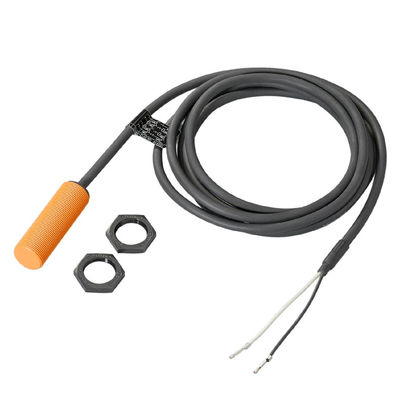

Ifm Efector IG0374 Inductive Sensor M18 Plastic Range 12mm

Ifm Efector IG0374 Inductive Sensor M18 Plastic Range 12mm

MOQ: 1
Price: $134/piece
Standard Packaging: 70*40*40mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
IG0374
Sensing Range[mm]:
12
Weight[g]:
109.6
Highlight:

Plastic Inductive Sensor

,

12mm Inductive Sensor

,

M18 Inductive Sensor

Product Description
Product characteristics
Output functionnormally open
Sensing range [mm] 12
Housing threaded type
Dimensions [mm] M18 x 1
Electrical data
Operating voltage [V] 20...250 AC/DC
Protection class II
Reverse polarity protection no
Outputs
Output function normally open
Max. voltage drop switching
output DC
[V] 6.5
Max. voltage drop switching
output AC
[V] 6.5
Minimum load current[mA] 5
Max. leakage current[mA] 2.5
Permanent current rating of
switching output AC
[mA] 250; (350 (...50 °C))
Permanent current rating of
switching output DC
[mA] 100
Short-time current rating of
switching output
[mA] 2200; (20 ms / 0,5 Hz)
Switching frequency AC[Hz] 25
Switching frequency DC[Hz] 100
Short-circuit proof no
Overload protection no
Detection zone
Sensing range[mm] 12
Real sensing range Sr[mm] 12 ± 10 %
Operating distance[mm] 0...9.7
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr] 3...15
Ifm Efector IG0374 Inductive Sensor M18 Plastic Range 12mm 0ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IG0374-00 — 13.04.2023 —

IG0374
Inductive sensor
IGC2012-ABOA
Switch point drift[% of Sr] -10...10
Operating conditions
Ambient temperature [°C] -25...70
Protection IP 67
Tests / approvals
EMC EN 60947-5-2
 EN 55011class B
MTTF[years] 600
Mechanical data
Weight [g]109.6
Housingthreaded type
Mountingnon-flush mountable
Dimensions [mm]M18 x 1
Thread designation M18 x 1
Materials PBT
