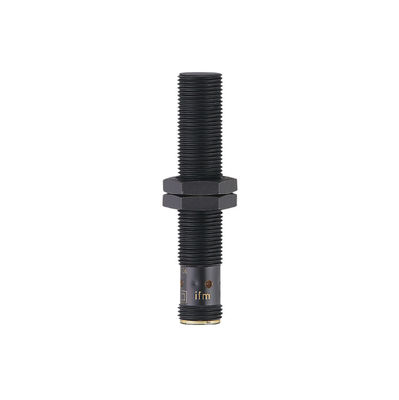

Ifm Ifw200 Inductive Sensor M12 3Mm Pnp Ip67 Inductive Sensor IFW200

Ifm Ifw200 Inductive Sensor M12 3Mm Pnp Ip67 Inductive Sensor IFW200

MOQ: 1
Price: $115/piece
Standard Packaging: 70*40*40mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
IFW200
Electrical Design:
PNP
Dimensions[mm]:
M12 X 1 / L = 65
Weight[g]:
29.1
Highlight:

Pnp Inductive Sensor

,

IP67 Inductive Sensor

,

M12 Inductive Sensor

Product Description
  Product characteristics
Inductive sensor
Metal thread M12 x 1
Quick disconnect
Increased sensing range
Weld field immune
Correction factor = 1
gold-plated contacts
Sensing range 3 mm; [f] flush mountable
  Electrical data
Electrical design DC PNP
Operating voltage [V]   10...30 DC; cULus - Class 2 source required
Current consumption [mA]   < 20
Protection class   II
Reverse polarity protection   yes
  Outputs
Output function normally open
Voltage drop [V]   < 2.5
Current rating [mA]   100
Short-circuit protection   yes
Overload protection   yes
Switching frequency [Hz]   2000
  Monitoring range
Sensing range [mm]   3
Real sensing range (Sr) [mm]   3 ± 10 %
Operating distance [mm]   0...2.4
  Accuracy / deviations
Correction factors   mild steel = 1 / stainless steel approx . 1 / brass approx . 1 / aluminium
approx . 1 / copper approx . 1

Hysteresis [% of Sr]   3... 15
Switch-point drift [% of Sr] - 10...10
  Environment
Ambient temperature [°C]   -25...70
Protection   IP 67
Max . electromagnetic field
immunity [mT]
  300
Ifm Ifw200 Inductive Sensor M12 3Mm Pnp Ip67 Inductive Sensor IFW200 0
http://www.ifm.com/products/us/ds/IFW200.htm 1/2
6/22/2017 IFW200 - Inductive sensor - eclass: 27270101 / 27-27-01-01
  Tests / approvals
EMC   EN 61000-4-2 ESD : 4 kV CD / 8 kV AD
  EN 61000-4-3 HF radiated : 10 V/ m
  EN 61000-4-4 Burst: 2 kV
  EN 61000-4-6 HF conducted : 10 V
  EN 55011: class B
MTTF [Years]   665
UL approval number A005
Mechanical data
Mounting Ifm Ifw200 Inductive Sensor M12 3Mm Pnp Ip67 Inductive Sensor IFW200 1flush mountable
Housing materials
Weight [kg]
Displays / operating elements
Output status indication LED yellow (4 x 90°)
Electrical connection
Connection M12 connector; gold-plated contacts
Ifm Ifw200 Inductive Sensor M12 3Mm Pnp Ip67 Inductive Sensor IFW200 2Wiring Ifm Ifw200 Inductive Sensor M12 3Mm Pnp Ip67 Inductive Sensor IFW200 3
Accessories
Accessories (included) 2 lock nuts
