MOQ: | 1 |
Price: | $53/piece |
Standard Packaging: | 70*40*40mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
Product characteristics | |||||||
Electrical design | PNP | ||||||
Output function | normally open | ||||||
Sensing range [mm] | 4 | ||||||
Housing | threaded type | ||||||
Dimensions [mm] | M12 x 1 / L = 45 | ||||||
Application | |||||||
Special feature | Gold-plated contacts; Increased sensing range | ||||||
Application | Suitable for industrial, mobile, cooling and lubricating applications; Industrial applications / factory automation |
||||||
Electrical data | |||||||
Operating voltage [V] | 10...30 DC | ||||||
Current consumption [mA] | < 10 | ||||||
Protection class | III | ||||||
Reverse polarity protection | yes | ||||||
Outputs | |||||||
Electrical design | PNP | ||||||
Output function | normally open | ||||||
Max. voltage drop switching output DC |
[V] | 2.5 | |||||
Permanent current rating of switching output DC |
[mA] | 100 | |||||
Switching frequency DC | [Hz] | 700 | |||||
Short-circuit protection | yes | ||||||
Overload protection | yes | ||||||
Detection zone | |||||||
Sensing range | [mm] | 4 | |||||
Real sensing range Sr | [mm] | 4 ± 10 % | |||||
Operating distance | [mm] | 0...3.24 | |||||
Increased sensing range | yes | ||||||
Accuracy / deviations | |||||||
Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 | ||||||
![]() |
|||||||

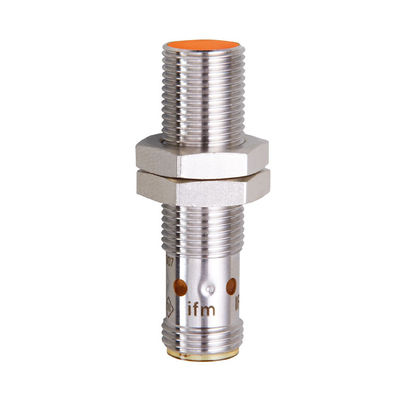

IFS244 | |||||||
Inductive sensor | |||||||
IFB3004BBPKG/US-104 | |||||||
Hysteresis | [% of Sr] | 3...15 | |||||
Switch point drift | [% of Sr] | -10...10 | |||||
Operating conditions | |||||||
Ambient temperature [°C] | -40...85 | ||||||
Protection | IP 65; IP 66; IP 67; IP 68; IP 69K | ||||||
Tests / approvals | |||||||
EMC | EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | |||||
EN 61000-4-3 HF radiated | 10 V/m | ||||||
EN 61000-4-4 Burst | 2 kV | ||||||
EN 61000-4-6 HF conducted | 10 V | ||||||
EN 55011 | class B | ||||||
Vibration resistance | EN 60068-2-6 Fc | 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes |
|||||
Shock resistance | EN 60068-2-27 Ea | 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|||||
Continuous shock resistance | EN 60068-2-27 | 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
|||||
Fast temperature change | EN 60068-2-14 Na | TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles |
|||||
Salt spray test | EN 60068-2-52 Kb | severity level 5 (4 test cycles) | |||||
MTTF [years] | 1134 | ||||||
Embedded software included | yes | ||||||
UL approval | Ta | -25...70 °C | |||||
Enclosure type | Type 1 | ||||||
power supply | Limited Voltage/Current | ||||||
UL Approval no. | A001 | ||||||
File number UL | E174191 | ||||||
Mechanical data | |||||||
Weight | [g] | 24.8 | |||||
Housing | threaded type | ||||||
Mounting | flush mountable | ||||||
Dimensions | [mm] | M12 x 1 / L = 45 | |||||
Thread designation | M12 x 1 |
