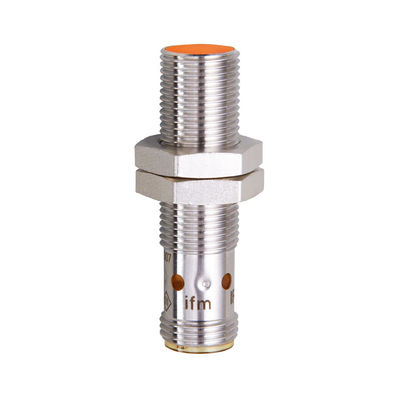

IFM Connector 1 X M12 Inductive Sensor IFS204 IFB3004BBPKG/US-104

IFM Connector 1 X M12 Inductive Sensor IFS204 IFB3004BBPKG/US-104

MOQ: 1
Price: $49/piece
Standard Packaging: 70*40*40mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
IFS204
Electrical Design:
PNP
Dimensions[mm]:
M12 X 1 / L = 45
Weight[g]:
24.7
Highlight:

IFM Inductive sensor IFS204

,

IFM Connector Inductive sensor

,

IFB3004BBPKG/US-104

Product Description
Product characteristics
Electrical designPNP
Output functionnormally open
Sensing range [mm] 4
Housing threaded type
Dimensions [mm] M12 x 1 / L = 45
Application
Special featureGold-plated contacts; Increased sensing range
ApplicationIndustrial applications / factory automation
Electrical data
Operating voltage [V]10...30 DC
Current consumption [mA] < 10
Protection class II
Reverse polarity protectionyes
Outputs
Electrical designPNP
Output functionnormally open
Max. voltage drop switching
output DC
[V] 2.5
Permanent current rating of
switching output DC
[mA] 100
Switching frequency DC[Hz] 700
Short-circuit protection yes
Overload protection yes
Detection zone
Sensing range[mm]4
Real sensing range Sr [mm] 4 ± 10 %
Operating distance[mm]0...3.25
Increased sensing range yes
IFM Connector 1 X M12 Inductive Sensor IFS204 IFB3004BBPKG/US-104 0ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IFS204-01 — 06.10.2014 —

IFS204
Inductive sensor
IFB3004BBPKG/US-104
Accuracy / deviations
Correction factorsteel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis
Switch point drift
[% of Sr]
[% of Sr]
 3...15
-10...10
Operating conditions
Ambient temperature [°C] -25...70
Protection IP 67
Tests / approvals
EMC EN 61000-4-2 ESD4 kV CD / 8 kV AD
 EN 61000-4-3 HF radiated10 V/m
 EN 61000-4-4 Burst2 kV
 EN 61000-4-6 HF conducted10 V
 EN 55011class B
MTTF[years] 1527
UL approval Ta0...40 °C
 Enclosure typeType 1
 voltage supplyHazardous voltage
 UL Approval no.A003
 File number ULE174191
Mechanical data
Weight[g] 24.7
Housing threaded type
Mounting flush mountable
Dimensions [mm] M12 x 1 / L = 45
Thread designation M12 x 1
Materials  brass white bronze coated; sensing face: PBT orange;
LED window: PEI; lock nuts: brass white bronze coated
