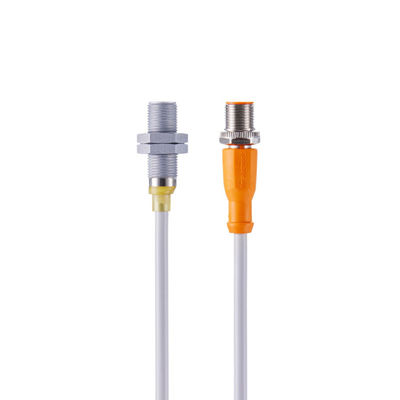

IFR203 Inductive Full-metal Sensor Ifm Electronic Connector 1 X M12

IFR203 Inductive Full-metal Sensor Ifm Electronic Connector 1 X M12

MOQ: 1
Price: $89/piece
Standard Packaging: 70*40*40mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
IFR203
Electrical Design:
PNP/NPN
Dimensions[mm]:
M12 X 1 / L = 35
Weight[g]:
50
Highlight:

IFR203 Full-metal Sensor

,

IFM Electronic Connector Full-metal Sensor

,

Inductive Full-metal Sensor

Product Description
Product characteristics
Electrical design PNP/NPN
Output function normally open
Sensing range [mm]   4
Housing   threaded type
Dimensions [mm]   M12 x 1 / L = 40
Application
Special feature   Gold-plated contacts; Increased sensing range; Full-
metal housing; Optical setting aid; anti-spatter
Application   Use in welding applications
Pressure rating [bar]   50
IFR203  Inductive Full-metal Sensor  Ifm Electronic Connector 1 X M12 0 IFR203  Inductive Full-metal Sensor  Ifm Electronic Connector 1 X M12 1Note on pressure rating sensing face
Electrical data
Operating voltage [V]   10...36 DC
Protection class     III
Reverse polarity protection     yes
Outputs
Electrical design   PNP/NPN
Output function   normally open
Max. voltage drop switching
output DC
[V]   2.5
Minimum load current [mA]   2
Max. leakage current [mA]     0.6
Permanent current rating of
switching output DC
[mA]   100
IFR203  Inductive Full-metal Sensor  Ifm Electronic Connector 1 X M12 2ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IFR203-00 — 13.04.2023 —

IFR203
Inductive full-metal sensor
IFB2004BARKG/AM/SC/0,3M/US/2LE
Switching frequency DC [Hz]   75
Short-circuit protection   yes
Type of short-circuit
protection
  pulsed
Overload protection     yes
Detection zone
Sensing range [mm] 4
Operating distance [mm]   0...3.25
Increased sensing range   yes
Accuracy / deviations
Correction factor   steel: 1 / stainless steel: 0.7 / brass: 0.2 / aluminium: 0.1 / copper: 0
Hysteresis [% of Sr]   1...20
Operating conditions
Ambient temperature [°C]   -25...70
Protection   IP 67
Tests / approvals
EMC   EN 61000-4-2 ESD 4 kV CD / 8 kV AD
  EN 61000-4-3 HF radiated 10 V/m
  EN 61000-4-4 Burst 2 kV
  EN 61000-4-6 HF conducted 10 V
  EN 55011 emission class B
Impact resistance     1 J
MTTF [years]   1422
UL approval   Ta 0...40 °C
  Enclosure type Type 1
  power supply Limited Voltage/Current
  File number UL E174191
Mechanical data
Weight [g]   50
Housing     threaded type
Mounting     flush mountable
Dimensions [mm]   M12 x 1 / L = 40
Thread designation       M12 x 1
Materials     housing: stainless steel (1.4404 / 316L) anti-spatter; sensing face: stainless steel (1.4404 /
316L) anti-spatter; cable plug: PA; lock nuts: stainless steel (1.4404 / 316L) anti-spatter
Full-metal housing     yes
Displays / operating elements
Display   switching status 1 x LED, green
  setting aid 1 x LED, red
Optical setting aid   yes
Accessories
IFR203  Inductive Full-metal Sensor  Ifm Electronic Connector 1 X M12 3 IFR203  Inductive Full-metal Sensor  Ifm Electronic Connector 1 X M12 4 Items supplied lock nuts: 2
Remarks
Pack quantity 1 pcs.
