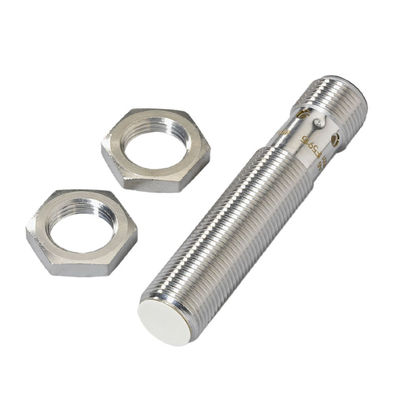

IF5915 Ifm Electronic Inductive Threaded Barrel Inductive Sensor IF5915

IF5915 Ifm Electronic Inductive Threaded Barrel Inductive Sensor IF5915

MOQ: 1
Price: $129/piece
Standard Packaging: 70*40*40mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
IF5915
Electrical Design:
PNP
Dimensions[mm]:
M12 X 1 / L = 60
Weight[g]:
27.7
Highlight:

Electronic Inductive Sensor IF5915

,

IF5915 Inductive Sensor

,

IF5915 Threaded Barrel Inductive Sensor

Product Description
Product characteristics
Electrical design PNP
Output function   normally open
Sensing range [mm]   4
Housing     Threaded type
Dimensions [mm]   M12 x 1 / L = 60
Application
System   gold-plated contacts; Increased sensing range
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 10
Protection class II
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function   normally open
Max. voltage drop switching
output DC
[V]   2.5
Permanent current rating of
switching output DC
[mA]   200
Switching frequency DC [Hz]   700
Short-circuit protection   yes
Overload protection   yes
Monitoring range
Sensing range [mm]   4
Real sensing range Sr [mm]   4 ± 10 %
Operating distance [mm]   0...3.24
Increased sensing range   yes
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
Hysteresis
Switch-point drift
[% of Sr]
[% of Sr]
  3...15
-10...10
IF5915 Ifm Electronic Inductive Threaded Barrel Inductive Sensor IF5915 0ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — IF5915-01 — 18.03.2015 —

IF5915
Inductive sensor
IFK3004BBPKG/US-104
Operating conditions
Ambient temperature [°C] -25...70
Protection IP 67
Tests / approvals
EMC   EN 60947-5-2
  EN 55011 class B
MTTF [years]   1528
Mechanical data
Weight [g]   27.7
Housing   Threaded type
Mounting   flush mountable
Dimensions [mm]   M12 x 1 / L = 60
Thread designation   M12 x 1
Material   brass white bronze coated; sensing face: LCP white;
LED window: PEI; lock nuts: brass white bronze coated
