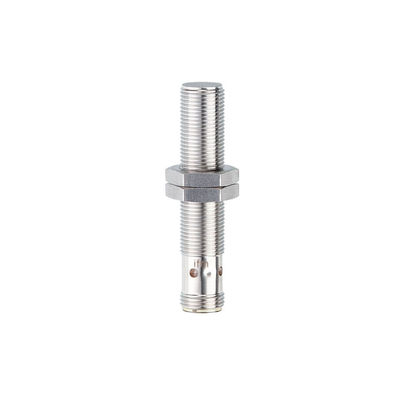

IF503A Inductive Full-metal Sensor Ifm Electronic Connector 1 X M12

IF503A Inductive Full-metal Sensor Ifm Electronic Connector 1 X M12

MOQ: 1
Price: $99/piece
Standard Packaging: 70*40*40mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
IF503A
Electrical Design:
PNP
Dimensions[mm]:
M8 X 1 / L = 37.5
Weight[g]:
45
Highlight:

Electronic Connector Inductive Full-metal Sensor

,

M12 Inductive Full-metal Sensor

,

IF503A Inductive Full-metal Sensor

Product Description
Application
Pressure rating[bar] 100
IF503A  Inductive Full-metal Sensor Ifm Electronic Connector 1 X M12 0 IF503A  Inductive Full-metal Sensor Ifm Electronic Connector 1 X M12 1Note on pressure rating sensing face
Electrical data
Operating voltage [V]10...36 DC
Current consumption [mA] < 20
Protection class III
Reverse polarity protectionyes
Outputs
Electrical designPNP
Output functionnormally open
Max. voltage drop switching
output DC
[V] 2.5
Max. leakage current[mA] 0.1
Permanent current rating of
switching output DC
[mA] 100
Switching frequency DC[Hz] 100
Short-circuit protection yes
Type of short-circuit
protection
 pulsed
Overload protection yes
Detection zone
Sensing range [mm] 3
Operating distance [mm] 0...2.4
Increased sensing range yes
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.1
Hysteresis [% of Sr] 1...20
Operating conditions
Ambient temperature [°C] -40...60
Protection IP 67; (when used outside the hazardous area: IP 65, IP 67, IP 68, IP 69K)
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — IF503A — 23.04.2014

IF503A
Inductive full-metal sensor
IFK3003BBPKG/AM/US104DPS/3G/3D
Tests / approvals
ATEX markingIF503A  Inductive Full-metal Sensor Ifm Electronic Connector 1 X M12 2 II 3G Ex nA IIC T6 Gc X
 IF503A  Inductive Full-metal Sensor Ifm Electronic Connector 1 X M12 3 II 3D Ex tc IIIC T85°C Dc IP67 X
EMC EN 61000-4-2 ESD4 kV CD / 8 kV AD
 EN 61000-4-3 HF radiated10 V/m
 EN 61000-4-4 Burst2 kV
 EN 61000-4-6 HF conducted10 V
 EN 55011 emissionclass B
MTTF[years] 1633
Mechanical data
Weight[g] 53
Housing  threaded type
Mounting flush mountable
Dimensions [mm] M12 x 1 / L = 60
Thread designation M12 x 1
Materials stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); PEI; lock nuts: stainless steel
Full-metal housing yes
Displays / operating elements
IF503A  Inductive Full-metal Sensor Ifm Electronic Connector 1 X M12 4 IF503A  Inductive Full-metal Sensor Ifm Electronic Connector 1 X M12 5 IF503A  Inductive Full-metal Sensor Ifm Electronic Connector 1 X M12 6 Display switching status 4 x 90° LED, yellow
Accessories
IF503A  Inductive Full-metal Sensor Ifm Electronic Connector 1 X M12 7 IF503A  Inductive Full-metal Sensor Ifm Electronic Connector 1 X M12 8 Accessories (supplied) lock nuts: 2
Remarks
Pack quantity1 pcs.
Electrical connection - plug
