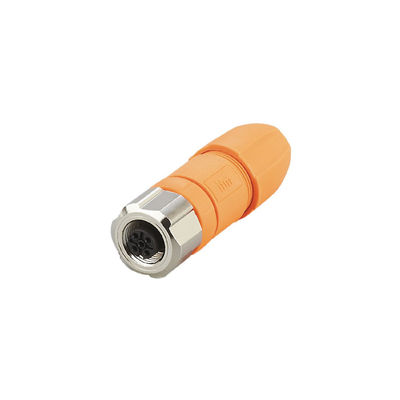

EVC810 - Female wirable connectors - ifm - ifm electronic Connector: 1 x M12

EVC810 - Female wirable connectors - ifm - ifm electronic Connector: 1 x M12

MOQ: 1
Price: $18/piece
Standard Packaging: 103 x 45 x 46mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
EVC810
Free From Silicone:
Yes
Weight[g]:
41.1
Molded-body Material:
PA 6.6
Product Description
Application
Special feature Free from silicone; Gold-plated contacts
Free from silicone yes
Electrical data
Operating voltage [V] < 250 AC / < 300 DC
Protection class II
Max. current load total [A]   4; (...40 °C)
Operating conditions
Ambient temperature [°C]   -25...90
Storage temperature [°C]   -25...55
Storage humidity [%]   10...100
Other climatic conditions for
storage according to stated
class
  1K22/ DIN 60721-3-1

Protection   IP 65; IP 67; IP 68; IP 69K
Mechanical data
Weight [g]   41.1
Materials Moulded body: PA 6.6 orange; Sealing: FKM green
Material nut nickel-plated brass
Remarks
Pack quantity 1 pcs.
EVC810 - Female wirable connectors - ifm - ifm electronic Connector: 1 x M12 0ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVC810-00 — 05.07.2019 —

EVC810
Wirable socket
SDOGH040MSSFKPG
Electrical connection
screw terminals: 0.25...1 mm²; Cable sheath: Ø 3.5...6 mm; AWG 23...17
Electrical connection - socket
EVC810 - Female wirable connectors - ifm - ifm electronic Connector: 1 x M12 1Connector: 1 x M12, straight; Moulded body: PA 6.6, orange; Locking: nickel-plated brass; Sealing: FKM; Contacts: gold-plated;
Tightening torque: 0.6...1.2 Nm; Take into account the maximum value of the counterpart!
Connection
BN =
WH =
BU =
BK =
EVC810 - Female wirable connectors - ifm - ifm electronic Connector: 1 x M12 2Core colours :
brown
white
blue
black
colours to DIN EN 60947-5-2
