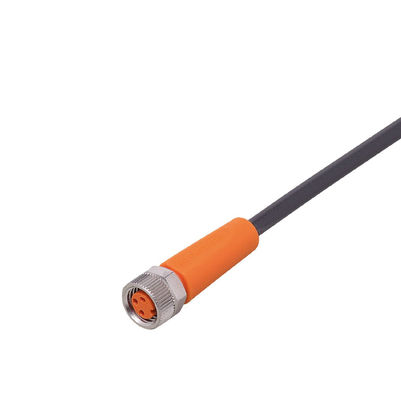

EVC141 - Female cordset - ifm Connector: 1 x M8

EVC141 - Female cordset - ifm Connector: 1 x M8

MOQ: 1
Price: $17/piece
Standard Packaging: 103 x 45 x 46mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
EVC141
Free From Silicone:
Yes
Weight[g]:
51.6
Dimensions[mm]:
10 X 10 X 31
Product Description
EVC141 - Female cordset - ifm Connector: 1 x M8 0

Application
Special feature Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone yes
Electrical data
Operating voltage [V] < 50 AC / < 60 DC
Protection class III
Max. current load total [A] 3
Operating conditions
Ambient temperature [°C]   -25...90
Note on ambient temperature   cULus: ...80 °C
Ambient temperature
(moving)
[°C]   -25...90
Note on ambient temperature
(moving)
  cULus: ...80 °C
  IP 65; IP 67; IP 68; IP 69K
Protection
EVC141 - Female cordset - ifm Connector: 1 x M8 1ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVC141-00 — 05.11.2020 —

EVC141
Connecting cable with socket
ADOGF030MSS0002H03
Mechanical data
Weight [g]   51.6
Dimensions [mm]   10 x 10 x 31
Materials   housing: TPU orange; Sealing: FKM
Material nut   brass, nickel-plated
Drag chain suitability   yes
Drag chain suitability   bending radius for flexible use min. 10 x cable diameter
  travel speed max. 3.3 m/s for a horizontal travel length
of 5 m and max. acceleration of 5 m/s²
  bending cycles > 5 Mio.
  torsional strain ± 180 °/m
Remarks
Pack quantity 1 pcs.
Electrical connection
Cable: 2 m, PUR, Halogen-free, black, Ø 3.7 mm; 3 x 0.25 mm² (32 x Ø 0.1 mm )
Electrical connection - socket
EVC141 - Female cordset - ifm Connector: 1 x M8 2Connector: 1 x M8, straight; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm
Connection
BK
BN
BU
EVC141 - Female cordset - ifm Connector: 1 x M8 3 Core colours :
black
brown
blue
