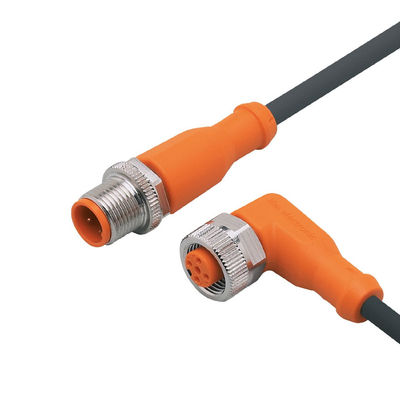

IFM Connection cable EVC019 VDOAH040MSS0005H04STGH040MSS Connector: 1 x M12 | part no : EVC019

IFM Connection cable EVC019 VDOAH040MSS0005H04STGH040MSS Connector: 1 x M12 | part no : EVC019

MOQ: 1
Price: $30.4/piece
Standard Packaging: 103 x 45 x 46
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
EVC019
Free From Silicone:
Yes
Weight[g]:
167.7
Drag Chain Suitability:
Yes
Product Description
Please see the technical note under "Downloads"

IFM Connection cable EVC019 VDOAH040MSS0005H04STGH040MSS Connector: 1 x M12 | part no : EVC019 0

Application
Special featureFree from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from siliconeyes
Electrical data
Operating voltage [V] < 250 AC / < 300 DC
Protection class II
Max. current load total[A] 4
Operating conditions
Ambient temperature [°C] -25...90
Note on ambient temperature cULus: ...75
Ambient temperature
(moving)
[°C] -25...90
Note on ambient temperature
(moving)
 cULus: ...75
 -25...55
Storage temperature[°C]
Storage humidity[%] 10...100
Other climatic conditions for
storage according to stated
class
 1K22/ DIN 60721-3-1
 IP 65; IP 67; IP 68; IP 69K
Protection
Mechanical data
Weight [g] 167.7
Materials housing: TPU orange; Sealing: FKM
IFM Connection cable EVC019 VDOAH040MSS0005H04STGH040MSS Connector: 1 x M12 | part no : EVC019 1ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVC019-01 — 13.04.2023 —

EVC019
Connection cable
VDOAH040MSS0005H04STGH040MSS
Material nut brass, nickel-plated
Drag chain suitability yes
Drag chain suitability bending radius for flexible usemin. 10 x cable diameter
 travel speedmax. 3.3 m/s for a horizontal travel length of 5
m and max. acceleration of 5 m/s²
 bending cycles> 5 Mio.
 torsional strain± 180 °/m
Remarks
Notes Please see the technical note under "Downloads"
Pack quantity 1 pcs.
Electrical connection - plug
IFM Connection cable EVC019 VDOAH040MSS0005H04STGH040MSS Connector: 1 x M12 | part no : EVC019 2Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
Electrical connection
Cable: 5 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Connection
IFM Connection cable EVC019 VDOAH040MSS0005H04STGH040MSS Connector: 1 x M12 | part no : EVC019 3
Electrical connection - socket
IFM Connection cable EVC019 VDOAH040MSS0005H04STGH040MSS Connector: 1 x M12 | part no : EVC019 4Connector: 1 x M12, angled; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
IFM Connection cable EVC019 VDOAH040MSS0005H04STGH040MSS Connector: 1 x M12 | part no : EVC019 5 ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVC019-01 — 13.04.2023 —

EVC019
Connection cable
VDOAH040MSS0005H04STGH040MSS
Diagrams and graphs
characteristic line for deratingIFM Connection cable EVC019 VDOAH040MSS0005H04STGH040MSS Connector: 1 x M12 | part no : EVC019 6 Derating Imax * 0.8 (DIN EN 60512-5-2)
X Ambient temperature [°C]
Y Current [A]
