PRODUCTS DETAILS
Home > Products >

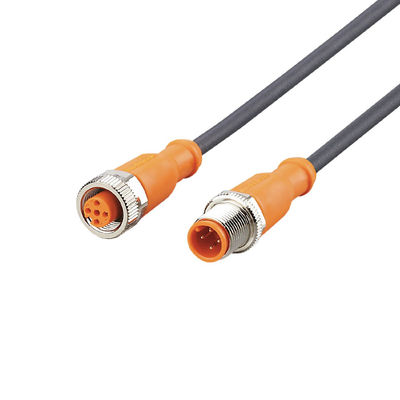

IFM Connection cable EVC014 VDOGH040MSS0005H04STGH040MSS Connector: 1 x M12 | part no: EVC014

IFM Connection cable EVC014 VDOGH040MSS0005H04STGH040MSS Connector: 1 x M12 | part no: EVC014

MOQ: 1
Price: $30/piece
Standard Packaging: 103 x 45 x 46
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
EVC014
Free From Silicone:
Yes
Weight[g]:
165.5
Drag Chain Suitability:
Yes
Product Description
IFM Connection cable EVC014 VDOGH040MSS0005H04STGH040MSS Connector: 1 x M12 | part no: EVC014 0

Application
Free from silicone yes
Electrical data
Operating voltage [V] < 250 AC / < 300 DC
Protection class II
Max. current load total [A]   4
Operating conditions
Ambient temperature [°C]   -25...90
Note on ambient temperature   cULus: ...75
Ambient temperature
(moving)
[°C]   -25...90
Note on ambient temperature
(moving)
  cULus: ...75
  IP 65; IP 67; IP 68; IP 69K
Protection
Mechanical data
Weight   [g]   188.2
Material   housing: TPU (urethane) orange; sealing: FKM
Material nut   brass / brass
Drag chain suitability   Bending radius for flexible applications min. 10 x cable diameter
  Travel speed max. 3.3 m/s for a horizontal travel length
of 5 m and max. acceleration of 5 m/s²
  Bending cycles > 5 Mio.
  Torsional strain ± 180 °/m
Drag chain suitability   yes
IFM Connection cable EVC014 VDOGH040MSS0005H04STGH040MSS Connector: 1 x M12 | part no: EVC014 1ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — EVC014-00 — 15.06.2010 —

EVC014
Connection cable
VDOGH040MSS0005H04STGH040MSS
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
IFM Connection cable EVC014 VDOGH040MSS0005H04STGH040MSS Connector: 1 x M12 | part no: EVC014 2Connector: 1 x M12, straight; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
Electrical connection
Cable: 5 m, PUR, Halogen-free, black, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Connection
IFM Connection cable EVC014 VDOGH040MSS0005H04STGH040MSS Connector: 1 x M12 | part no: EVC014 3
Electrical connection - Socket
IFM Connection cable EVC014 VDOGH040MSS0005H04STGH040MSS Connector: 1 x M12 | part no: EVC014 4Connector: 1 x M12, straight; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
