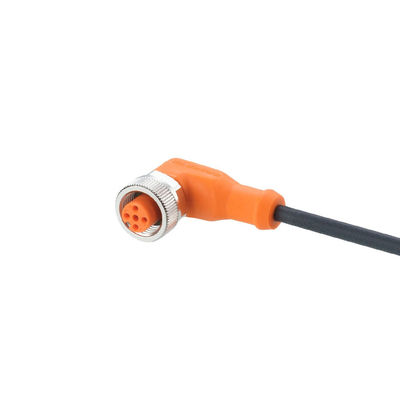

IFM Female cordset EVC004 ADOAH040MSS0002H04 | part no : EVC004

IFM Female cordset EVC004 ADOAH040MSS0002H04 | part no : EVC004

MOQ: 1
Price: $11.5
Standard Packaging: 100*100*100mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
EVC004
Free From Silicone:
Yes
Weight[g]:
76.1
Dimensions[mm]:
26.5 X 15.5 X 36.5
Product Description
Female cordset
ADOAH040MSS0002H04
IFM Female cordset EVC004 ADOAH040MSS0002H04 | part no : EVC004 0

Application
SystemFree from silicone; Halogen-free; gold-plated contacts; Drag chain suitability
Free from siliconeyes
Electrical data
Operating voltage [V]< 250 AC / < 300 DC
Protection class II
Max. current load total [A] 4
Operating conditions
Ambient temperature[°C] -25...90
Note on ambient temperature cULus: ...75 °C
Ambient temperature
(moving)
[°C] -25...90
Note on ambient temperature
(moving)
 cULus: ...75 °C
 -25...55
Storage temperature[°C]
Storage humidity[%] 10...100
Other climatic conditions for
storage according to stated
class
 1K22/ DIN 60721-3-1
 IP 65; IP 67; IP 68; IP 69K
Protection
IFM Female cordset EVC004 ADOAH040MSS0002H04 | part no : EVC004 1ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — EVC004-01 — 10.01.2020 —

EVC004
Female cordset
ADOAH040MSS0002H04
Mechanical data
Weight[g]76.1
Dimensions [mm] 26.5 x 15.5 x 36.5
Material housing: TPU (urethane) orange; sealing: FKM
Material nut brass, nickel-plated
Drag chain suitability yes
Drag chain suitability Bending radius for flexible applicationsmin. 10 x cable diameter
 Travel speedmax. 3.3 m/s for a horizontal travel length
of 5 m and max. acceleration of 5 m/s²
 Bending cycles> 5 Mio.
 Torsional strain± 180 °/m
Remarks
Notes Please see the technical note under "Downloads"
Pack quantity 1 pcs.
Electrical connection
Cable: 2 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - Socket
IFM Female cordset EVC004 ADOAH040MSS0002H04 | part no : EVC004 2Connector: 1 x M12, angled; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
IFM Female cordset EVC004 ADOAH040MSS0002H04 | part no : EVC004 3 ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — EVC004-01 — 10.01.2020 —

EVC004
Female cordset
ADOAH040MSS0002H04
Connection
IFM Female cordset EVC004 ADOAH040MSS0002H04 | part no : EVC004 4
 Core colors :
BK = black
BN = brown
BU = blue
WH = white
Diagrams and graphs
Characteristic curve for deratingIFM Female cordset EVC004 ADOAH040MSS0002H04 | part no : EVC004 5 Derating Imax * 0.8 (DIN EN 60512-5-2)
X Ambient temperature [°C]
Y Current [A]


IFM Female cordset EVC004 ADOAH040MSS0002H04 | part no : EVC004 6
IFM Female cordset EVC004 ADOAH040MSS0002H04 | part no : EVC004 7
