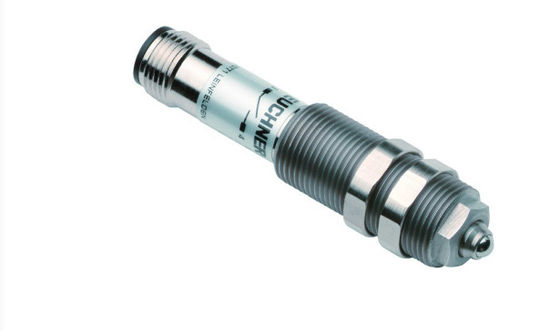

Euchner EGT1/4A2000 Precision Single Hole Fixing Limit Switch EGT1/4 001366
  • Name
  • Name

Euchner EGT1/4A2000 Precision Single Hole Fixing Limit Switch EGT1/4 001366

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Payment Method: T/T
Supply Capacity: 30PCS/WEEKS
Details Information
Product Description
Detail Information
Place of Origin
Germany
Brand Name
Euchner
Model Number
EGT1/4A2000
Ordernumber:
001366
Connection Cross-section:
0.5 Mm²
Actuating Element:
Ball Plunger(short)
Approach Speed:
Max. 8 M/min
Cable Ambient Temperature:
-25 ... +80 °C
Cable Length:
2 M
Connection:
PUR Cable (two-core)
Design:
Thread M14 X 1
Highlight:

EGT1/4A2000 Limit Switch

,

Euchner EGT1/4A2000

,

Precision Single Hole Fixing Limit Switch

Product Description

Euchner EGT1/4A2000 Precision Single Hole Fixing Limit Switch EGT1/4 001366​



Electrical connection ratings

Connection cross-section 0.5 mm2
Rated insulation voltage UI 250 V
Short circuit protection according to IEC 60269-1 0.4A gG
Switching current 　
min. at 24 V 1 mA
Utilization category 　
DC-13 0.3A 24V
AC-12 0.03A 230V



Mechanical values and environment

Actuating element Ball plunger (short)
Actuating force 　
approx. 16 N
Approach speed max. 8 m/min
Cable ambient temperature (static) -25 ... +80 °C
Cable length 2 m
Connection PUR cable (two-core)
Degree of protection IP68
Design Thread M14 x 1
Installation orientation any
Material 　
Sleeve Plastic
Contact Rhodium
Threaded section stainless steel
Mechanical life 30 x 106
Number of NO contacts 1
Repeat accuracy (absolute) ±0.01 mm
(on axial actuation in the retracted state after approx. 2,000 operating cycles
Switching principle Reed contact



Euchner EGT1/4A2000 Precision Single Hole Fixing Limit Switch EGT1/4 001366 0
