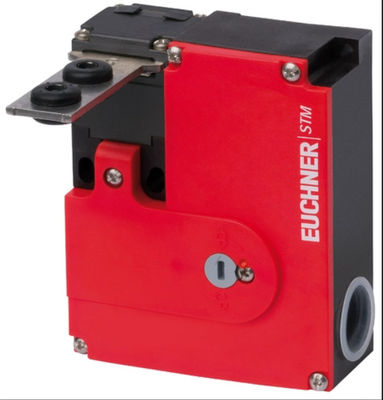

Euchner STM1N-222B024-M Safety Switch STM Actuating Head Made Of Plastic 091865
  • Name
  • Name

Euchner STM1N-222B024-M Safety Switch STM Actuating Head Made Of Plastic 091865

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Euchner Safety Switch Stm Actuating Head Made Of Plastic Slow Action Switching
Payment Method: T/T
Supply Capacity: 30PCS/WEEKS
Details Information
Product Description
Detail Information
Place of Origin
Germany
Brand Name
Euchner
Model Number
STM1N-222B024-M
Ordernumber:
091865
Power Consumption:
6 W
Rated Insulation Voltage Ui:
250 V
Thermal Rated Current Ith:
4 A
Switching Principle:
Slow-action Switching Contact
Locking Force Fmax:
1000 N
Locking Force FZh:
700 N
Gross Weight:
0,478kg
Product Description

Euchner STM1N-222B024-M Safety Switch STM Actuating Head Made Of Plastic 091865



Approach direction

Horizontal and vertical

Can be adjusted in 90° steps



Solenoid operating voltage

AC/DC 24 V +10%, -15%



Guard locking type

STM1 Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the guard locking solenoid.


Switching element

ÜK For monitoring the guard locking (built-in solenoid) slow-action switching contact 1 NC

Combination available:

222   Slow-action switching contact 2 NC



Auxiliary release
This is used for releasing the guard locking with the aid of a tool. To protect against tampering, the auxiliary release is sealed with sealing lacquer



Electrical connection values

Power consumption 6 W
Connection cross section 0.34 ... 1.5 mm²
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category 　
AC-15 4 A 230 V
DC-13 4 A 24 V
Short circuit protection according to IEC 60269-1 4A gG
Solenoid operating voltage 　
AC/DC 24 V -15% ... +10%
Solenoid duty cycle 1
Switching voltage 　
min. at 10 mA 12 V
Switching current 　
min. at 24 V 1 mA
thermal rated current Ith 4 A



Euchner STM1N-222B024-M Safety Switch STM Actuating Head Made Of Plastic 091865 0
