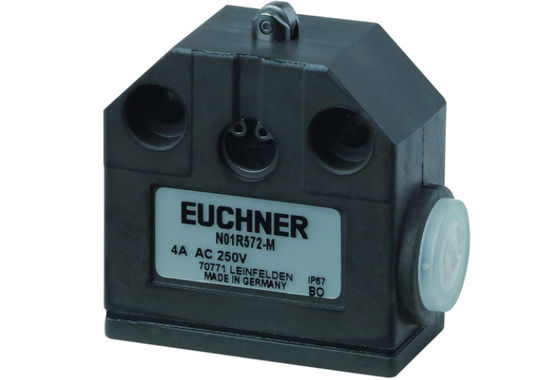

Euchner N01R550-M Precision Single Limit Switch N01, Roller Plunger 084903
  • Name
  • Name
  • Name

Euchner N01R550-M Precision Single Limit Switch N01, Roller Plunger 084903

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Precision Single Limit Switch N01, Roller Plunger 084903
Payment Method: T/T
Supply Capacity: 30PCS/WEEKS
Details Information
Product Description
Detail Information
Place of Origin
Germany
Brand Name
Euchner
Model Number
N01R550-M
Ordernumber:
084903
Approach Speed:
0.01 ... 50 M/min
Actuating Force:
15 ... 20 N
Degree Of Protection:
IP67
Ambient Temperature:
-5 ... +80 °C
Gross Weight:
0,084kg
Customs Tariff Number:
85365019000
Connection Cross Section:
0.14 ... 1 Mm²
Product Description

Euchner N01R550-M Precision Single Limit Switch N01, Roller Plunger 084903



Electrical connection values

Connection cross section 0.14 ... 1 mm²
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category 　
DC-13 2 A 24 V
AC-15 2 A 230 V
Short circuit protection according to IEC 60269-1 6A gG
Switching current 　
min. at DC 24V 10 mA
thermal rated current Ith 6 A



Mechanical values and environment

Approach speed 0.01 ... 50 m/min
Connection type 　
1 x M12 x 1.5
Number of door position NC contacts 1 Changeover contact
Number of door position NO contacts 1
Actuating element 　
Slide bearing metal Roller plunger
Actuating force 15 ... 20 N
Installation orientation any
Mechanical life 10 x 10⁶
Switching principle Changeover contact with snap-action function
Degree of protection IP67
Ambient temperature -5 ... +80 °C
Material 　
Contact Silver alloy, gold flashed
Housing Anodized die-cast alloy



Euchner N01R550-M Precision Single Limit Switch N01, Roller Plunger 084903 0
