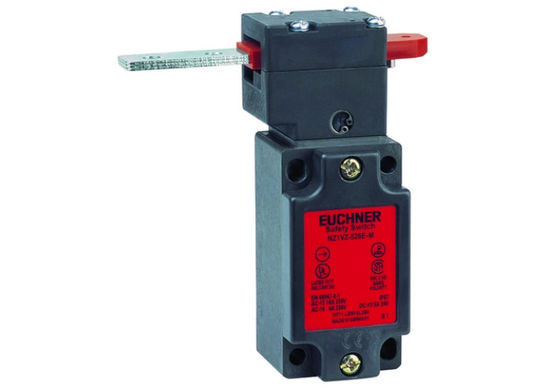

Euchner NZ1VZ-2131E-M Cable Entry M20 X 1.5 082123

Euchner NZ1VZ-2131E-M Cable Entry M20 X 1.5 082123

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Euchner NZ1VZ-2131E-M Cable Entry M20 X 1.5 Housing
Payment Method: T/T
Supply Capacity: 30PCS/WEEKS
Detail Information
Place of Origin
Germany
Brand Name
Euchner
Model Number
NZ1VZ-2131E-M
Ordernumber:
082123
Actuating Force:
35 N
Actuation Frequency:
Max. 1200 1/h
Ambient Temperature:
-25 ... +80 °C
Approach Speed:
Max. 20 M/min
Nsertion Depth:
52 Mm
Retention Force:
8 N
Gross Weight:
0,349kg
Product Description

Euchner NZ1VZ-2131E-M Cable Entry M20 X 1.5 082123



Housing according to EN 50041
Cable entry M20 x 1.5



Electrical connection values

Connection cross section 0.34 ... 1.5 mm²
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
AC-15 4 A 230 V
DC-13 4 A 24 V
Short circuit protection according to IEC 60269-1 4A gG
Switching voltage
min. at 10 mA 12 V
Switching current
min. at 24 V 1 mA
thermal rated current Ith 4 A



Mechanical values and environment

Approach direction A
Connection type
1 x M20 x 1.5
Number of door position NO contacts 1
Number of door position positively driven contacts 3
Extraction force 35 N
Actuation frequency max. 1200 1/h
Actuating force 35 N
Installation orientation any
Insertion depth 52 mm
Mechanical life 2 x 10⁶
Retention force 8 N
Switching principle Slow-action switching contact
Degree of protection IP67
Ambient temperature -25 ... +80 °C
Material
Housing Anodized die-cast alloy
Contact Silver alloy, gold flashed



Euchner NZ1VZ-2131E-M Cable Entry M20 X 1.5 082123 0
