PRODUCTS DETAILS
Home > Products >

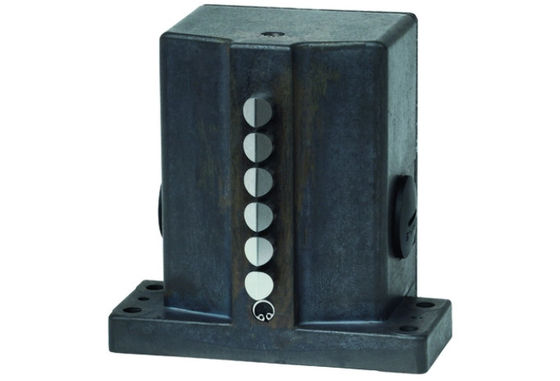

Euchner GSBF02R12-502-MC1806 Series GSBF... 12/16 Mm, Mechanical 089529

Euchner GSBF02R12-502-MC1806 Series GSBF... 12/16 Mm, Mechanical 089529

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Payment Method: T/T
Supply Capacity: 30PCS/WEEKS
Detail Information
Place of Origin
Germany
Brand Name
Euchner
Model Number
GSBF02R12-502-MC1806
Ordernumber:
089529
Approach Speed:
0.01 ... 80 M/min
Connection Type:
2 X M25 X 1.5
Number NC Contacts:
2
Number Of NO Contacts:
2
Design:
Upright
Contact Bounce Time:
< 3ms
Ambient Temperature:
-5 ... +80 °C
Highlight:

Euchner GSBF02R12-502-MC1806 Series GSBF

,

Mechanical Euchner GSBF02R12-502-MC1806

,

12/16 Mm Euchner GSBF02R12-502-MC1806

Product Description

Euchner GSBF02R12-502-MC1806 Series GSBF... 12/16 Mm, Mechanical 089529



Features

• Plunger spacing 12 or 16 mm
• Upright housing
• Degree of protection IP67 according to IEC 60529
• LED function display optional



Electrical connection values

Connection cross section 0.34 ... 1.5 mm²
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
AC-12 8 A 250 V
DC-13 6 A 24 V
AC-15 6 A 230 V
Short circuit protection according to IEC 60269-1 8A gG
Switching current
min. at DC 12V min. 10 mA
thermal rated current Ith 0.333333333
Mechanical values and environment

Approach speed
0.01 ... 80 m/min
Connection type 2 x M25 x 1.5
Number NC contacts 2
Number of switching elements 2
Number of NO contacts 2
Design upright
Actuating element Roller plunger
Actuating force min. 20 N
Installation orientation any
Mechanical life 30 x 10⁶
Contact bounce time < 3ms
Roller diameter 8
Switching principle Snap-action switching contact
Operating point accuracy ± 0,01
Contact closing time < 4ms
Degree of protection IP67
Plunger spacing 12 mm
Ambient temperature -5 ... +80 °C
Material
Contact Silver alloy, gold flashed
Housing Die-cast aluminum, anodized



Euchner GSBF02R12-502-MC1806 Series GSBF... 12/16 Mm, Mechanical 089529 0
