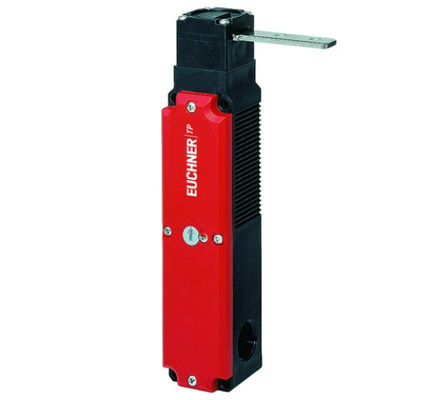

Euchner TP4-2131A024M Safety Switch TP With Door Monitoring Contact 084145

Euchner TP4-2131A024M Safety Switch TP With Door Monitoring Contact 084145

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Payment Method: T/T
Supply Capacity: 30PCS/WEEKS
Detail Information
Place of Origin
Germany
Brand Name
Euchner
Model Number
TP4-2131A024M
Ordernumber:
084145
Ambient Temperature:
-20 ... 55 °C
Housing Material:
Reinforced Thermoplastic
Degree Of Protection:
IP67
Actuation Frequency:
1200 1/h
Retention Force:
10 N
Extraction Force:
20 N
Actuating Force:
10 N
Highlight:

Euchner TP4-2131A024M

,

Door Monitoring Contact Safety Switch

,

Euchner TP4-2131A024M Safety Switch

Product Description

Euchner TP4-2131A024M Safety Switch TP With Door Monitoring Contact 084145



Features

• Auxiliary release on the front
• With door monitoring contact
• Increased horizontal overtravel



Solenoid operating voltage



AC/DC 24 V +10%, -15%



Guard locking type

TP4 Open-circuit current principle, guard locking by applying voltage to the guard locking solenoid. Release by spring force.



Switching element

2131 Slow-action switching contact 2 NC + 1 NO + 1 NC (door monitoring contact)



Auxiliary release

Is used for releasing the guard locking with the aid of a tool. To protect against tampering, the auxiliary release is sealed with sealing lacquer.



Mechanical figures and environment

Housing material Reinforced thermoplastic
Ground
Net 0,5 kg
Ambient temperature -20 ... 55 °C
Degree of protection IP67
Mechanical life 1 x 106
Contact material Silver alloy, gold flashed
Switching principle Slow-action switching contact
Installation position Any
Number of door position positively driven contacts 2
Number of NC contacts 1
Number of NO contacts 1
Connection
3 x M20 x 1.5
Approach speed
max. 20 m/min
Actuation frequency 1200 1/h
Guard locking principle Open-circuit current principle
Locking force F 1300 N
Locking force F 1000 N
Retention force 10 N
Extraction force 20 N
Actuating force 10 N



Euchner TP4-2131A024M Safety Switch TP With Door Monitoring Contact 084145 0
