IFM Position Sensors Inductive Sensors All Inductive Sensors II5910

IFM Position Sensors Inductive Sensors All Inductive Sensors II5910

MOQ: 1pc
Price: $100-$200
Standard Packaging: new in box
Delivery Period: 3-5days
Payment Method: T/T, L/C
Supply Capacity: 30pcs/month
Detail Information
Place of Origin
Germany
Brand Name
IFM
Model Number
IFM Position sensors Inductive sensors All inductive sensors II5910
Warranty:
1year
Operating Voltage [V]:
10...32 DC
Electrical Design:
PNP
Output Function:
Normally Open
Switching Frequency DC [Hz]:
100
Sensing Range [mm]:
15
Highlight:

II5910 Inductive Position Sensors

,

All Inductive Position Sensors

,

IFM Inductive Position Sensors

Product Description

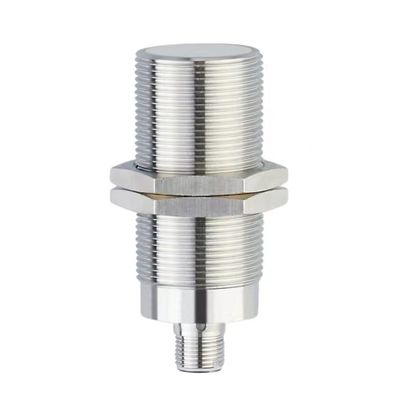

IFM Position Sensors Inductive Sensors All Inductive Sensors II5910 0IFM Position Sensors Inductive Sensors All Inductive Sensors II5910 1

Product characteristics
Electrical design PNP
Output function normally open
Sensing range [mm] 15
Housing Threaded type
Dimensions [mm] M30 x 1.5 / L = 75
Application
System gold-plated contacts
Application Industrial applications
Electrical data
Operating voltage [V] 10...32 DC
Current consumption [mA] 10
Protection class II
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 100
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Sensing range [mm] 15
Real sensing range Sr [mm] 15 ± 10 %
Operating distance [mm] 0...12.15
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
Hysteresis [% of Sr] 1...20
Switch-point drift [% of Sr] -10...10
Operating conditions
Ambient temperature [°C] -40...70
Protection IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-5 Surge 0,5 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted 10 V
EN 55011 class B
signal-to-noise ratio walkie-talkie 150 MHz (5 W): 7,5 cm / 450 MHz (5 W): 5 cm / 900 MHz (2 W): 0 cm
Vibration resistance
EN 60068-2-6 Fc 20 g (10...3000 Hz) / 50 sweep cycles per frequency; 1 octave per minute in 3 axes
Shock resistance
EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Continuous shock resistance
EN 60068-2-27 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
MTTF [years] 1083
Mechanical data
Weight [g] 209
Housing Threaded type
Mounting flush mountable
Dimensions [mm] M30 x 1.5 / L = 75
Thread designation M30 x 1.5
Material housing: brass white bronze coated; sensing face: PBT white; LED window: PEI; lock nuts: brass white bronze coated
Tightening torque [Nm] 50
Displays / operating elements
Display
Switching status 4 x LED, yellow
Accessories
Items supplied
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connection Connector: 1 x M12; coding: A; Contacts: gold-plated
