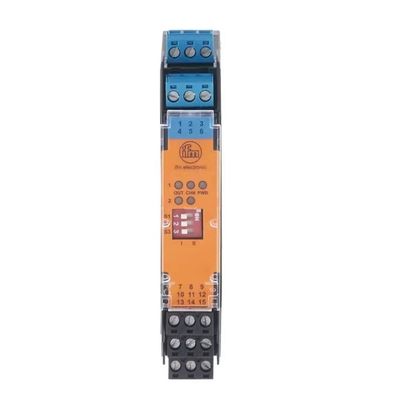

Switching amplifiers for Namur sensors N0533A NV1221/24VDC/RL/1D/1G

Switching amplifiers for Namur sensors N0533A NV1221/24VDC/RL/1D/1G

MOQ: 1pc
Price: $200-$300
Standard Packaging: new in box
Delivery Period: 3-5days
Payment Method: T/T
Supply Capacity: 30pcs/month
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Model Number
N0533A
Warranty:
1year
Operating Voltage Tolerance [%]:
-15...25
Operating Voltage Tolerance [%] -15...25 Operating Voltage [V]:
24 DC
Current Consumption [mA]:
< 50
Number Of Channels:
2
Ambient Temperature [°C] -20...60 Protection:
IP 20
Product Description

Switching amplifiers for Namur sensors N0533A NV1221/24VDC/RL/1D/1G 0Switching amplifiers for Namur sensors N0533A NV1221/24VDC/RL/1D/1G 1
Application short-circuit monitoring; Wire break monitoring
Electrical data
Operating voltage tolerance [%] -15...25
Operating voltage [V] 24 DC
Current consumption [mA] < 50
Number of channels 2
Outputs
Electrical design Relay; (per channel: 1 changeover contact configurable)
Contact rating 253 V AC / 2 A / cos phi > 0,7 // 40 V DC / 2 A; (resistive load)
Switching frequency DC [Hz] 10
Operating conditions
Ambient temperature [°C] -20...60
Protection IP 20
Tests / approvals
Approval PTB 02 ATEX 2036; IECEx PTB 17.0024
ATEX marking II (1) G [Ex ia Ga] IIC
  II (1) D [Ex ia Da] IIIC
EMC
EN 50081-2 (1993)
EN 61326-1 (2006)
MTTF [years] 325
Mechanical data
Weight [g] 188.45
Switching cycles mechanical 10 million
Displays / operating elements
Display
Switching status 2 x LED, yellow
Power LED, green
Function 2 x LED, red
Remarks
Remarks
Caution The control monitor must be mounted outside the hazardous area.
Free terminals must not be used.
Pack quantity 1 pcs.
Electrical connection
Connection terminals: ...2.5 mm²
Other data
Maximum values for control circuit
in protection rating intrinsic safety [EEx ia] IIC [EEx ia] IIB [EEx ib] IIC [EEx ib] IIB
Voltage [V] 10.5 10.5 10.5 10.5
Current [mA] 13 13 13 13
Power [mW] 34 34 34 34
External inductance [mH] 210 840 210 840
External capacitance [µF] 2.41 16.8 2.41 16.8
