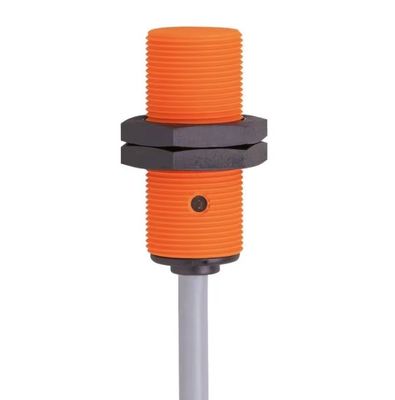

FM - IG5716 IGC2005-ARKG/UP, INDUCTIVE PROXIMITY SWITCH

FM - IG5716 IGC2005-ARKG/UP, INDUCTIVE PROXIMITY SWITCH

MOQ: 1year
Price: $200-$300
Standard Packaging: new in box
Delivery Period: 3-5days
Ifm Inductive Sensor Housing Threaded Type Mounting Flush Mountable
Payment Method: T/T
Supply Capacity: 50pcs/weeks
Detail Information
Place of Origin
germany
Brand Name
ifm
Model Number
IG5876
Warranty:
1 Year
Electrical Design:
PNP/NPN
Electrical Design PNP/NPN Output Function:
Normally Open
Real Sensing Range Sr [mm:
9
Operating Distance [mm:
9
Protection:
IP 67
Product Description
Electrical design PNP/NPN
Output function normally open
Sensing range [mm] 5
Housing threaded type
Dimensions [mm] M18 x 1 / L = 42
Electrical data
Operating voltage [V] 10...36 DC
Protection class II
Reverse polarity protection yes
Outputs





FM - IG5716 IGC2005-ARKG/UP, INDUCTIVE PROXIMITY SWITCH 0

Electrical design PNP/NPN
Output function normally open
Max. voltage drop switching output DC [V] 4.6
Minimum load current [mA] 4
Max. leakage current [mA] 0.8
Permanent current rating of switching output DC [mA] 150
Switching frequency DC [Hz] 720
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Sensing range [mm] 5
Real sensing range Sr [mm] 5 ± 10 %
Operating distance [mm] 0...4.05
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr] 1...15
Switch point drift [% of Sr] -10...10
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
MTTF [years] 2642
Mechanical data
Weight [g] 448.1
Housing threaded type
Mounting flush mountable
Dimensions [mm] M18 x 1 / L = 42
Thread designation M18 x 1
Materials PBT
Displays / operating elements
Display
switching status 1 x LED, yellow
Accessories
Items supplied
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 10 m, PVC
