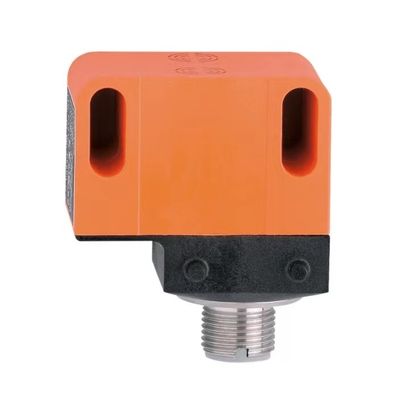

IFM IN5331 Dual inductive sensor for valve actuators

IFM IN5331 Dual inductive sensor for valve actuators

MOQ: 1year
Price: $100-$200
Standard Packaging: new in box
Delivery Period: 3-5DAYS
Ifm In5331 Position Sensors Valve Position Sensors For Quarter-Turn Actuators
Payment Method: T/T
Supply Capacity: 50pcs/weeks
Detail Information
Place of Origin
germany
Brand Name
ifm
Model Number
IN5331
Warranty:
1 Year
Electrical Design:
PNP/NPN
Output Function:
2 X Normally Open
Sensing Range [mm:
9
Operating Voltage [V:
9
Dimensions [mm:
9
Product Description

IFM IN5331 Dual inductive sensor for valve actuators 0

Electrical design PNP/NPN
Output function 2 x normally open
Sensing range [mm] 4
Housing rectangular
Dimensions [mm] 40 x 26 x 47
Electrical data
Operating voltage [V] 10...36 DC
Protection class II
Reverse polarity protection yes
Outputs
Electrical design PNP/NPN
Output function 2 x normally open
Max. voltage drop switching output DC [V] 4
Minimum load current [mA] 4
Max. leakage current [mA] 2 x 0.7
Permanent current rating of switching output DC [mA] 250
Switching frequency DC [Hz] 250
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Sensing range [mm] 4
Real sensing range Sr [mm] 4 ± 10 %
Operating distance [mm] 0...3.25
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / aluminum: 0.3 / copper: 0.4
Hysteresis [% of Sr] 3...15
Switch-point drift [% of Sr] -10...10
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 1229
Mechanical data
Weight [g] 58.5
Housing rectangular
Mounting non-flush mountable
Dimensions [mm] 40 x 26 x 47
Material housing: PBT; cover: PC
Displays / operating elements
Display
Switching status 2 x LED, red
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connection Connector: 1 x M12; coding: A; Moulded body: brass, white bronze coated
