MOQ: | 1pc |
Price: | $200-$300 |
Standard Packaging: | new box |
Delivery Period: | 3_5weeks |

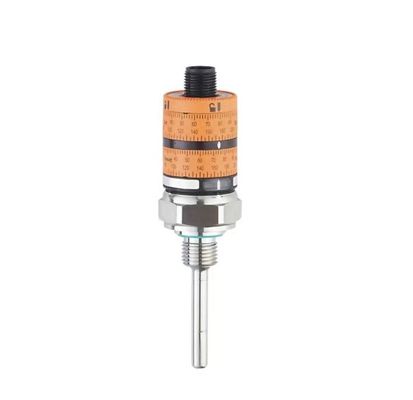

OEM Temperature Sensor Switch With Adjustment Dials Tk6110 | |
Payment Method: | T/T |
Supply Capacity: | 50pcs |
Number of inputs and outputs | Number of digital outputs: 2 | ||
---|---|---|---|
Measuring range |
|
||
Process connection | threaded connection G 1/4 | ||
Installation length EL [mm] | 50 |
System | gold-plated contacts |
---|---|
Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
Media | liquids and gases |
Medium temperature [°C] | -40...145 |
Pressure rating [bar] | 400 |
Operating voltage [V] | 9.6...32 DC; (cULus - Class 2 source required) |
---|---|
Current consumption [mA] | < 30 |
Protection class | III |
Reverse polarity protection | yes |
Power-on delay time [s] | 0.5 |
Number of inputs and outputs | Number of digital outputs: 2 |
---|
Total number of outputs | 2 |
---|---|
Output signal | switching signal |
Electrical design | PNP |
Number of digital outputs | 2 |
Output function | complementary |
Max. voltage drop switching output DC [V] | 2 |
Permanent current rating of switching output DC [mA] | 500 |
Short-circuit protection | yes |
Type of short-circuit protection | yes (non-latching) |
Overload protection | yes |
Measuring range |
|
||
---|---|---|---|
Set point SP |
|
||
Reset point rP |
|
Temperature drift per 10 K [K] | 0.1 **) |
---|---|
Repeatability [K] | ± 0,1 |
Setting accuracy [K] | ± 3 |
Dynamic response T05 / T09 [s] | 1 / 3; (according to DIN EN 60751) |
---|
Adjustment of the switch point | setting rings |
---|
Ambient temperature [°C] | -40...80 | |||
---|---|---|---|---|
Note on ambient temperature |
|
|||
Storage temperature [°C] | -40...100 | |||
Protection | IP 67 |
EMC |
|
||||||||
---|---|---|---|---|---|---|---|---|---|
Shock resistance |
|
||||||||
Vibration resistance |
|
||||||||
MTTF [years] | 643.1 | ||||||||
UL approval |
|
Weight [g] | 104.5 |
---|---|
Material | stainless steel (1.4404 / 316L); PC; PBT; FKM |
Materials (wetted parts) | stainless steel (1.4404 / 316L); FKM |
Tightening torque [Nm] | 35 |
Process connection | threaded connection G 1/4 |
Probe diameter [mm] | 6 |
Installation length EL [mm] | 50 |
Display |
|
---|
Remarks |
|
||
---|---|---|---|
Pack quantity | 1 pcs. |
Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
---|
