Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

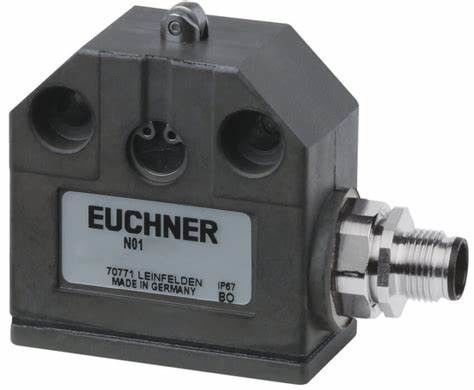

Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Payment Method: T/T
Supply Capacity: 100PCS/MONTHS
Details Information
Product Description
Detail Information
Place of Origin
Germany
Brand Name
Euchner
Certification
UL,CCC,etc.
Model Number
N01K550-M
Manufacturer:
Euchner
Product NO.:
N01K550-M
Product Type:
Precision Single Limit Switch
Warranty:
1 Year
Moq:
1 Set
Highlight:

ball plunger single limit switch

,

Euchner N01K550-M single limit switch

Product Description



Euchner N01K550-M (ORDER NO. 084904) Precision single limit switch N01, ball plunger





Specification



Part Number: N01K550-M
Manufacturer: Euchner
Condition : Brand New
Warranty : 12 months
Product Type Precision single limit switch





Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger 0









Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger 1







Electrical connection values

Connection cross section 0.14 ... 1 mm²
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
DC-13 2 A 24 V
AC-15 2 A 230 V
Short circuit protection according to IEC 60269-1 6A gG
Switching current
min. at DC 24V 10 mA
thermal rated current Ith 6 A

Mechanical values and environment

Approach speed 0.01 ... 8 m/min
Connection type
1 x M12 x 1.5
Number of door position NC contacts 1 Changeover contact
Number of door position NO contacts 1
Actuating element
Steel ball D ball = 4 mm Ball plunger
Actuating force 15 ... 20 N
Installation orientation any
Mechanical life 10 x 10⁶
Switching principle Changeover contact with snap-action function
Degree of protection IP67
Ambient temperature -5 ... +80 °C
Material
Housing Anodized die-cast alloy
Contact Silver alloy, gold flashed

Cooperative Brand



Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger 2



Packaging & Shipping



Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger 3Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger 4

Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger 5

Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger 6



Why Choose Us



Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger 7

Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger 8Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger 9







Xiamen ZhiCheng Automation Technology Co., Ltd

Xiamen ZhiCheng Automation Technology Co., Ltd it is a leading global supplier of control system components. We specialize in control systems and drives.

With many years of experience in the industrial sector, we consistently deliver the highest quality of spare parts. We have tens of thousands of spare partsand spare parts warehouse . Products and services to serve for installing of users control system,Distributed control systems, programmable controllers, panel controller and drive!

We major in DCS system,Sensor,PLC,Connector,Valve, and Instrument,MAGNETRON,RO Membrane. With many years of experience in the industrial sector, we consistently deliver the highest quality of spare parts.which make sure that all this jobs are perfectly.

If you have any further questions, please don't hesitate to contact us.



More about us , u can view :
Official web: http://www.zcsensors.com/
Alibaba web: https://zcsensors.en.alibaba.com/
