EL9505 Beckhoff | Power Supply Terminal 5 V DC
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

EL9505 Beckhoff | Power Supply Terminal 5 V DC

MOQ: 1set
Price: $1--$1000
Standard Packaging: 100% original package
Delivery Period: 1-10 working days
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 100PCS/MONTHS
Details Information
Product Description
Detail Information
Place of Origin
Germany
Brand Name
Beckhoff
Certification
CE
Model Number
EL9505
Brand Name:
Beckhoff
Model:
EL9505
Warranty:
1 Year
Product Type:
Power Supply Terminal
Shipping Weight:
0.5 Kg
Estimated Lead Time:
1-10 Working Days
Highlight:

Beckhoff EL9505

,

Beckhoff Power supply terminal

,

5 V DC Power supply terminal

Product Description

Beckhoff EL9505 | Power supply terminal 5 V DC



Product Description





The EL9505 power supply terminal takes the input voltage (24 V DC) and uses it to generate an output voltage of 5 V DC at 0.5 A, which can be tapped at the terminal. The following EtherCAT Terminals are also supplied with this voltage via the power contacts. The power LEDs indicate the operating states of the terminals, short-circuits or overloads are indicated by the overcurrent LEDs. The status is also displayed in the process image. The input voltage and the output voltage U0 are not electrically isolated.





Product Information





Technical data EL9505
Technology power supply terminal with diagnostics and overcurrent LED
Short-circuit proof yes
Input voltage 24 V DC (-15%/+20%)
Output voltage 5 V DC ±1%
Output current 0.5 A
Current consumption E-bus 90 mA
Electrical isolation 500 V (E-bus/field potential)
Residual ripple < 5 mV
Diagnostics in the process image yes
Special features stabilized output voltage
Weight approx. 65 g
Operating/storage temperature 0…+55°C/-25…+85°C
Relative humidity 95%, no condensation
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
Pluggable wiring for all ESxxxx terminals
Protect. rating/installation pos. IP20/variable
Approvals/markings CE, UL, ATEX, IECEx
Ex marking ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc





Housing data EL-12-8pin ES-12-8pin
Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level
Material polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking labeling of the BZxxx series
Wiring solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²		 s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm²
Connection cross-section AWG s*: AWG28…14,
st*: AWG28…14,
f*: AWG26…16		 s*: AWG28…16,
st*: AWG28…16,
f*: AWG26…16
Stripping length 8…9 mm 9…10 mm
Current load power contacts Imax: 10 A





Product Photo

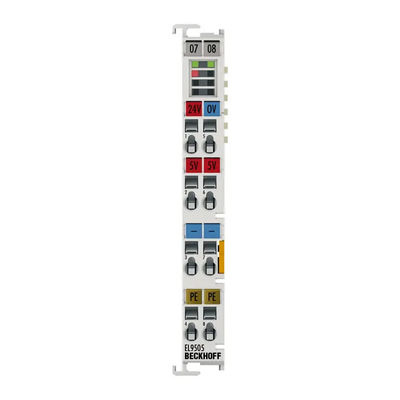

EL9505 Beckhoff | Power Supply Terminal 5 V DC 0

EL9505 Beckhoff | Power Supply Terminal 5 V DC 1



More Products





Ordering information
EL9505 Power supply terminal 5 V DC
ES9505 Power supply terminal 5 V DC, pluggable wiring
