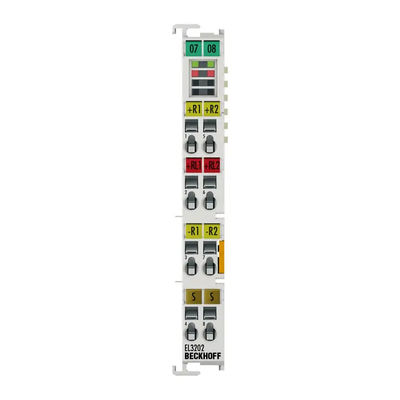

Beckhoff EL3202 | EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit
Specification
Product name |
EtherCAT Terminal |
Model |
EL3202 |
Warranty |
1 Year |
MOQ |
1set |
Quality |
100% Original 100% Brand |
Package |
Carton Box |
Technical data | EL3202 |
---|---|
Number of inputs | 2 |
Power supply | via the E-bus |
Distributed clocks | – |
Input filter limit frequency | typ. 1 kHz |
Sensor types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 Ω…1/4 kΩ), KTY sensors (types see documentation) |
Connection method | 2- or 3-wire (default: 2-wire) |
Conversion time | approx. 85 ms default setting, 2…800 ms configurable |
Measuring current | < 0.5 mA (load-dependent) |
Temperature range | -200…+850°C (Pt sensors); -60…+250°C (Ni sensors) |
Resolution | 0.1°C per digit |
Measurement error/ uncertainty | < ±0.5°C for Pt sensors |
Electrical isolation | 500 V (E-bus/signal voltage) |
Current consumption power contacts | – |
Current consumption E-bus | typ. 190 mA |
Bit width in the process image | 2 x 32 bit RTD input |
Special features | integrated digital filter, limit value monitoring, variable connection technology |
Operating/storage temperature | -25…+60°C/-40…+85°C |
Weight | approx. 60 g |
Relative humidity | 95%, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. rating/installation pos. | IP20/variable |
Approvals/markings | CE, UL, ATEX, IECEx |
Pluggable wiring | for all ESxxxx terminals |
Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
Housing data | EL-12-8pin | ES-12-8pin |
---|---|---|
Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
Material | polycarbonate | |
Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
Side by side mounting by means of | double slot and key connection | |
Marking | labeling of the BZxxx series | |
Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver | |
Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
s*: AWG28…16, st*: AWG28…16, f*: AWG26…16 |
Stripping length | 8…9 mm | 9…10 mm |
Current load power contacts | Imax: 10 A |
Ordering Information
Ordering information | |
---|---|
EL3202 | EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit |
ES3202 | EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, pluggable wiring |
