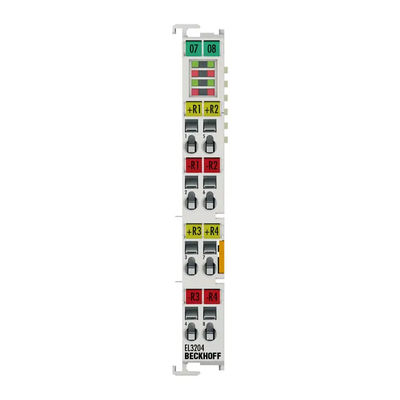

Beckhoff EL3204 | EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit

MOQ: 1set
Price: $1--$1000
Standard Packaging: 100% original package
Delivery Period: 1-10 working days
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 100PCS/MONTHS
Details Information
Product Description
Detail Information
Place of Origin
Germany
Brand Name
Beckhoff
Certification
CE
Model Number
EL3204
Brand Name:
Beckhoff
Model:
EL3204
Warranty:
1 Year
Product Type:
EtherCAT Terminal
Shipping Weight:
0.5 Kg
Estimated Lead Time:
1-10 Working Days
Highlight:

Beckhoff EL3204 EtherCAT terminal

,

4-channel RTD temperature input

,

16-bit analog input module

Product Description



Beckhoff EL3204 | EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit

​​



Specification



Product name

 EtherCAT Terminal

Model

 EL3204

Warranty

1 Year

MOQ

1set

Quality

100% Original 100% Brand

Package

Carton Box





Beckhoff EL3204 | EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit 0





Technical data EL3204
Number of inputs 4
Power supply via the E-bus
Distributed clocks –
Input filter limit frequency typ. 1 kHz
Sensor types Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 Ω…1/4 kΩ), KTY sensors (types see documentation)
Connection method 2-wire
Conversion time approx. 85 ms default setting, 2…800 ms configurable
Measuring current < 0.5 mA (load-dependent)
Temperature range -200…+850°C (Pt sensors); -60…+250°C (Ni sensors)
Resolution 0.1°C per digit
Measurement error/ uncertainty < ±0.5°C for Pt sensors
Electrical isolation 500 V (E-bus/signal voltage)
Current consumption power contacts –
Current consumption E-bus typ. 190 mA
Bit width in the process image 4 x 32 bit RTD input
Special features integrated digital filter, limit value monitoring
Operating/storage temperature -25…+60°C/-40…+85°C
Weight approx. 60 g
Relative humidity 95%, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Approvals/markings CE, UL, ATEX, IECEx, cFMus
Pluggable wiring for all ESxxxx terminals
Ex marking ATEX:
II 3G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc
Housing data EL-12-8pin ES-12-8pin
Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level
Material polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking labeling of the BZxxx series
Wiring solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²		 s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm²
Connection cross-section AWG s*: AWG28…14,
st*: AWG28…14,
f*: AWG26…16		 s*: AWG28…16,
st*: AWG28…16,
f*: AWG26…16
Stripping length 8…9 mm 9…10 mm
Current load power contacts Imax: 10 A



Ordering Information



Ordering information
EL3204 EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit
ES3204 EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit, pluggable wiring
