EL9100 Beckhoff Potential supply terminal 24 V DC

EL9100 Beckhoff Potential supply terminal 24 V DC

MOQ: 1set
Price: $1--$1000
Standard Packaging: 100% original package
Delivery Period: 1-10 working days
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
Germany
Brand Name
Beckhoff
Certification
CE
Model Number
EL9100
Brand Name:
Beckhoff
Model:
EL9100
Warranty:
1 Year
Product Type:
Potential Supply Terminal
Shipping Weight:
0.5 Kg
Estimated Lead Time:
1-10 Working Days
Highlight:

24 V DC Potential supply terminal

,

EL9100 Potential supply terminal

Product Description



Beckhoff EL9100 | Potential supply terminal, 24 V DC


Product Description






The EL9100 potential feed terminal enables the setup of different potential groups with the standard voltage 24 V DC. The supply voltage is taken up via the front terminal contacts and passed through to the adjacent terminals via the internal power contacts. The E-bus is passed through in the usual way to the adjacent terminal. A Power LED indicates the operating state.





Product Information






Technical data

EL9100

Technology

potential supply terminal

Current load

≤ 10 A

Power LED

green

Renewed infeed

yes

Nominal voltage

24 V DC

Electrical isolation

500 V (E-bus/field potential)

PE contact

yes

Connection facility to additional power contact

1

Bit width in the process image

0

Housing width

12 mm

Side by side mounting on
EtherCAT Terminals with
power contact

yes

Side by side mounting on
EtherCAT Terminals without
power contact

yes

Weight

approx. 50 g

Operating/storage temperature

-25…+60°C/-40…+85°C

Pluggable wiring

for all ESxxxx terminals

Approvals/markings

CE, UL, ATEX, IECEx

Ex marking

ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc





Housing data

EL-12-8pin

ES-12-8pin

Design form

compact terminal housing with signal LEDs

terminal housing with pluggable wiring level

Material

polycarbonate

Dimensions (W x H x D)

12 mm x 100 mm x 68 mm

Installation

on 35 mm DIN rail, conforming to EN 60715 with lock

Side by side mounting by means of

double slot and key connection

Marking

labeling of the BZxxx series

Wiring

solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver

Connection cross-section

s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²

s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm²

Connection cross-section AWG

s*: AWG28…14,
st*: AWG28…14,
f*: AWG26…16

s*: AWG28…16,
st*: AWG28…16,
f*: AWG26…16

Stripping length

8…9 mm

9…10 mm

Current load power contacts

Imax: 10 A

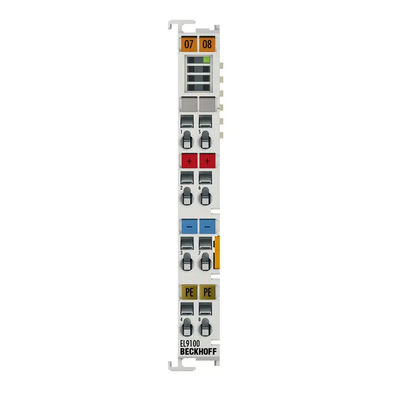

Product Photo






EL9100 Beckhoff  Potential supply terminal 24 V DC 0



More Products






Ordering information



EL9100

Potential supply terminal, 24 V DC

ES9100

Potential supply terminal, 24 V DC, pluggable wiring
