KL9010 Beckhoff End Terminal E-Bus End Terminal

KL9010 Beckhoff End Terminal E-Bus End Terminal

MOQ: 1set
Price: $1--$1000
Standard Packaging: 100% original package
Delivery Period: 1-10 working days
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
Germany
Brand Name
Beckhoff
Certification
CE
Model Number
KL9010
Brand Name:
Beckhoff
Model:
KL9010
Warranty:
1 Year
Product Type:
E-Bus End Terminal
Shipping Weight:
0.5 Kg
Estimated Lead Time:
1-10 Working Days
Highlight:

Beckhoff KL9010 E-Bus end terminal

,

KL9010 E-Bus end terminal

,

Beckhoff KL9010 End Terminal

Product Description

Beckhoff KL9010 | End terminal E-Bus end terminal



Product Description






The KL9010 bus end terminal is necessary for data exchange between the Bus Coupler and the Bus Terminals. Each assembly must be terminated at the right hand end with a KL9010 bus end terminal. The bus end terminal does not have any other function or connection facility.





Product Information




Technical data

KL9010

Current load
Integrated fine-wire fuse
Power LED
Defect LED
Diagnostics
Starting current
Current consumption K-bus
Nominal voltage
Electrical isolation
Reported to K-bus
PE contact
Shield connection
Renewed infeed
Connection facility to additional power contact
K-bus, looped through –/yes
Bit width in the process image 0
Electrical connection to DIN rail
Housing width 12 mm
Special features end terminal for bus communication
Weight approx. 50 g
Side by side mounting on Bus Terminals with power contact yes
Side by side mounting on Bus Terminals without power contact yes
Operating/storage temperature -25…+60°C/-40…+85°C
Approvals/markings CE, UL, ATEX, IECEx, DNV GL, cFMus
Ex marking ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc





Housing data

KL-12-8pin

KS-12-8pin

Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level
Material polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking labeling of the BZxxx series
Wiring solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²
s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm²
Connection cross-section AWG s*: AWG28…14,
st*: AWG28…14,
f*: AWG26…16
s*: AWG28…16,
st*: AWG28…16,
f*: AWG26…16
Stripping length 8…9 mm 9…10 mm
Current load power contacts Imax: 10 A

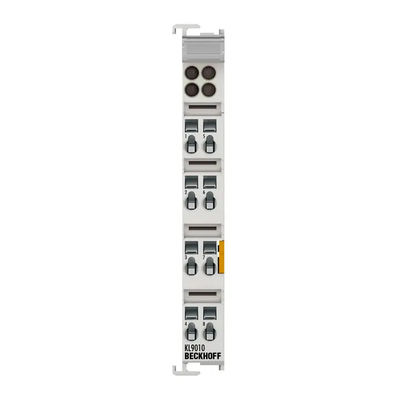

Product Photo
