EL5042 Beckhoff EtherCAT Terminal 2-channel encoder interface, BiSS C

EL5042 Beckhoff EtherCAT Terminal 2-channel encoder interface, BiSS C

MOQ: 1set
Price: $1--$1000
Standard Packaging: 100% original package
Delivery Period: 1-10 working days
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
Germany
Brand Name
Beckhoff
Certification
CE
Model Number
EL5042
Brand Name:
Beckhoff
Model:
EL5042
Warranty:
1 Year
Product Type:
EtherCAT Terminal
Shipping Weight:
0.5 Kg
Estimated Lead Time:
1-10 Working Days
Highlight:

Beckhoff EL5042

,

2-channel encoder interface EL5042

,

Beckhoff EL5042 EtherCAT Terminal

Product Description

Beckhoff EL5042 | EtherCAT Terminal, 2-channel encoder interface, BiSS C



Product Description






The EL5042 EtherCAT Terminals is a BiSS-C master and enables the direct connection of an absolute encoder with BiSS-C or SSI interface. Both singleturn and multiturn encoders are supported. The EL5042 also provides an encoder supply of 5 V or optionally 9 V.

The extensive parameterization allows optimum adaptation to different encoder types.

Special features:

  • unidirectional BiSS-C communication

  • parameterization per channel possible

  • baud rate up to max. 10 MHz

  • separate evaluation of the error and warning bit in the process data

  • position value output with up to 64 bits (depending on the encoder resolution)

  • also usable as SSI master

Via the distributed clocks function, the position value is read out exactly synchronously with other processes. If the distributed clocks function is deactivated, the EL5042 clocks synchronize with the EtherCAT cycle

The use of encoder profiles enables simple and fast linking of process data for motion control applications.





Product Information






Technical data

EL5042

Technology BiSS-C interface, unidirectional
Number of channels 2
Encoder connection D+, D-, C+, C-
Encoder operating voltage optionally 5 V DC or 9 V DC, 0.5 A total current (generated from the 24 V DC power contacts)
Supply voltage electronics 24 V DC (via power contacts)
Commands
Resolution max. 64 bit position, 2 bit status, 8 bit CRC
Data transfer rates up to 10 MHz, variable
Current consumption power contacts typ. 150 mA + load
Current consumption E-bus typ. 120 mA
Distributed clocks yes
Special features adjustable baud rate, data length, two status bits (error and warning) can be evaluated separately
Electrical isolation 500 V (E-bus/field potential)
Weight approx. 50 g
Operating/storage temperature 0…+50°C/-25…+85°C
Relative humidity 95%, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Approvals/markings CE, UL





Housing data

EL-12-16pin

Design form HD (High Density) housing with signal LEDs
Material polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking labeling of the BZxxx series
Wiring solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section s*: 0.08…1.5 mm²,
st*: 0.25…1.5 mm²,
f*: 0.14…0.75 mm²
Connection cross-section AWG s*: AWG28…16,
st*: AWG22…16,
f*: AWG26…19
Stripping length 8…9 mm
Current load power contacts Imax: 10 A

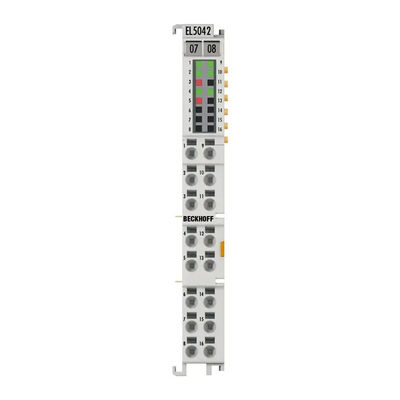

Product Photo




EL5042 Beckhoff  EtherCAT Terminal 2-channel encoder interface, BiSS C 0
