EL5001 Beckhoff EtherCAT Terminal 1-channel Encoder Interface SSI

EL5001 Beckhoff EtherCAT Terminal 1-channel Encoder Interface SSI

MOQ: 1set
Price: $1--$1000
Standard Packaging: 100% original package
Delivery Period: 1-10 working days
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
Germany
Brand Name
Beckhoff
Certification
CE
Model Number
EL5001
Brand Name:
Beckhoff
Model:
EL5001
Warranty:
1 Year
Product Type:
EtherCAT Terminal
Shipping Weight:
0.5 Kg
Estimated Lead Time:
1-10 Working Days
Highlight:

SSI Beckhoff EL5001

,

Beckhoff EL5001 EtherCAT Terminal

,

1-channel encoder interface Beckhoff EL5001

Product Description

Beckhoff EL5001 | EtherCAT Terminal, 1-channel encoder interface, SSI



Product Description






The EL5001 EtherCAT Terminal is an SSI master and enables the direct connection of an absolute encoder with SSI (synchronous serial interface). Both singleturn and multiturn encoders are supported. The 24 V supply of the encoder can be provided directly via the terminal connection points. The EL9505 power supply unit terminal can be used for an optional 5 V encoder operating voltage.

Extensive parameterization allow optimum adaptation to different encoder types.

Special features:

  • baud rate up to max. 1 MHz

  • coding: gray and binary

  • data length up to 32 bit, flexibly adjustable

  • separate evaluation of a status error bit (power fail bit) in the process data

Via the distributed clocks function, the position value is read out exactly synchronously with other processes. If the distributed clocks function is deactivated, the EL5001 clocks synchronize with the EtherCAT cycle. The encoder profile enables simple and fast linking of the process data for motion control applications.





Product Information






Technical data

EL5001

Technology SSI encoder interface
Number of channels 1
Encoder connection D+, D-, Cl+, Cl-
Encoder operating voltage 24 V DC (generated from the power contacts)
Distributed clocks yes
Signal output (pulse) difference signal (RS422)
Signal input (data) difference signal (RS422)
Power supply 24 V via power contacts
Current consumption power contacts typ. 20 mA + load
Data transfer rates variable up to 1 MHz, 250 kHz default
Serial input variable up to 32 bit, 24 bit default
Data direction read
Electrical isolation 500 V (E-bus/field potential)
Current consumption E-bus typ. 120 mA
Special features adjustable baud rate, coding and data length, power fail bit activatable
Weight approx. 55 g
Operating/storage temperature -25…+60°C/-40…+85°C
Relative humidity 95%, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Pluggable wiring for all ESxxxx terminals
Approvals/markings CE, UL, ATEX, IECEx
Ex marking ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc





Housing data

EL-12-8pin

ES-12-8pin

Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level
Material polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking labeling of the BZxxx series
Wiring solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²
s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm²
Connection cross-section AWG s*: AWG28…14,
st*: AWG28…14,
f*: AWG26…16
s*: AWG28…16,
st*: AWG28…16,
f*: AWG26…16
Stripping length 8…9 mm 9…10 mm
Current load power contacts

Imax: 10 A

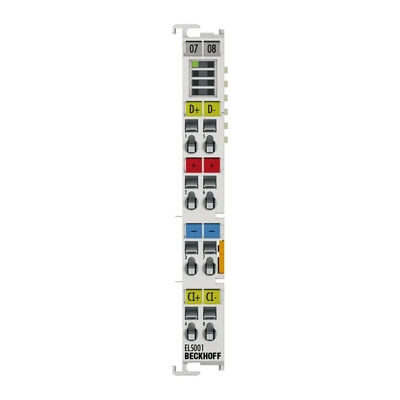

Product Photo






EL5001 Beckhoff EtherCAT Terminal 1-channel Encoder Interface SSI 0



More Products






Ordering information



EL5001 EtherCAT Terminal, 1-channel encoder interface, SSI
ES5001

EtherCAT Terminal, 1-channel encoder interface, SSI, pluggable wiring
