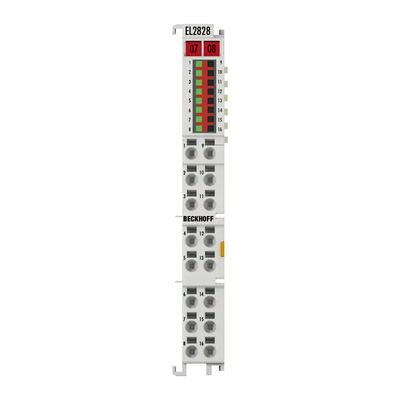

Beckhoff EL2828 | EtherCAT Terminal, 8-channel digital output, 24 V DC, 2 A
Specification
Product name |
EtherCAT Terminal |
Model |
EL2828 |
Warranty |
1 Year |
MOQ |
1set |
Quality |
100% Original 100% Brand |
Package |
Carton Box |
Technical data | EL2828 |
---|---|
Connection technology | 2-wire |
Number of outputs | 8 |
Nominal voltage | 24 V DC (-15%/+20%) |
Load type | ohmic, inductive, capacitive |
Distributed clocks | – |
Max. output current | 2 A per channel (∑ 10 A) |
Short-circuit current | typ. < 40 A |
Reverse voltage protection | yes |
Breaking energy | < 1.2 J/channel |
Switching times | typ. TON: 60 µs, typ. TOFF: 250 µs |
Current consumption E-bus | typ. 110 mA |
Electrical isolation | 500 V (E-bus/field potential) |
Current consumption power contacts | typ. 15 mA + load |
Bit width in the process image | 8 outputs |
Configuration | no address or configuration setting |
Weight | approx. 70 g |
Operating/storage temperature | -25…+60°C/-40…+85°C |
Relative humidity | 95%, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. rating/installation pos. | IP20/vertical |
Approvals/markings | CE, UL |
Housing data | EL-12-16pin |
---|---|
Design form | HD (High Density) housing with signal LEDs |
Material | polycarbonate |
Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
Side by side mounting by means of | double slot and key connection |
Marking | labeling of the BZxxx series |
Wiring | solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver |
Connection cross-section | s*: 0.08…1.5 mm², st*: 0.25…1.5 mm², f*: 0.14…0.75 mm² |
Connection cross-section AWG | s*: AWG28…16, st*: AWG22…16, f*: AWG26…19 |
Stripping length | 8…9 mm |
Current load power contacts | Imax: 10 A |
